中科大老师的科学可视化课件分享(十五)
历时15周，本学期的《可视化设计与开发》课程终于全部完结。

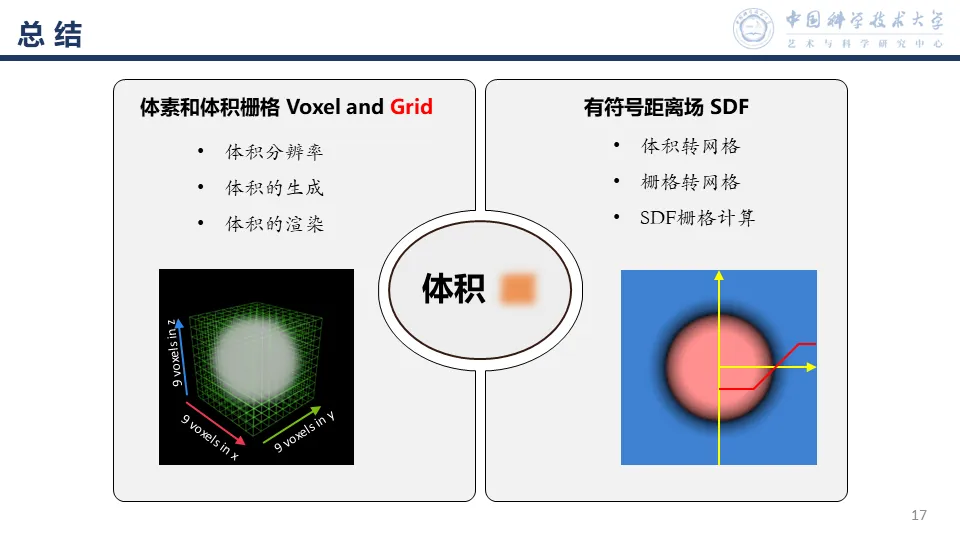

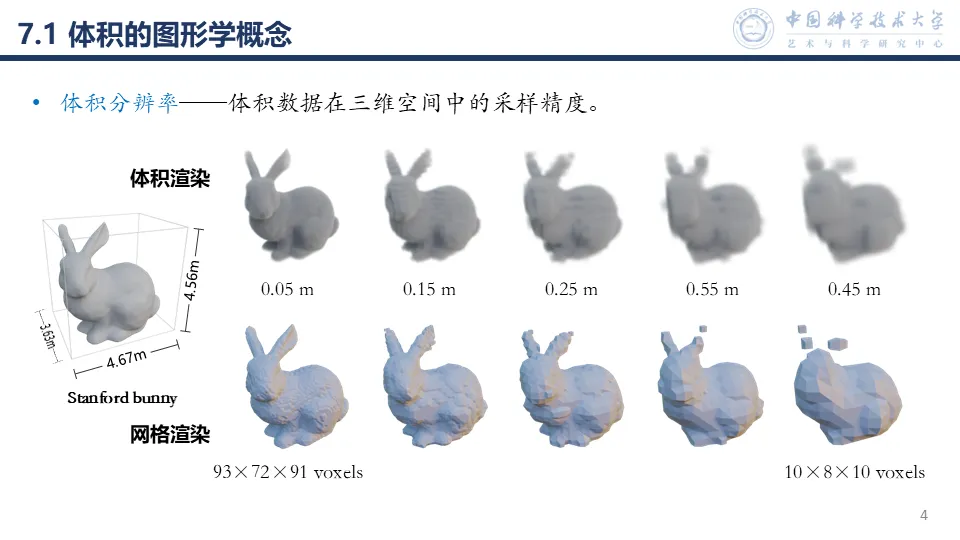

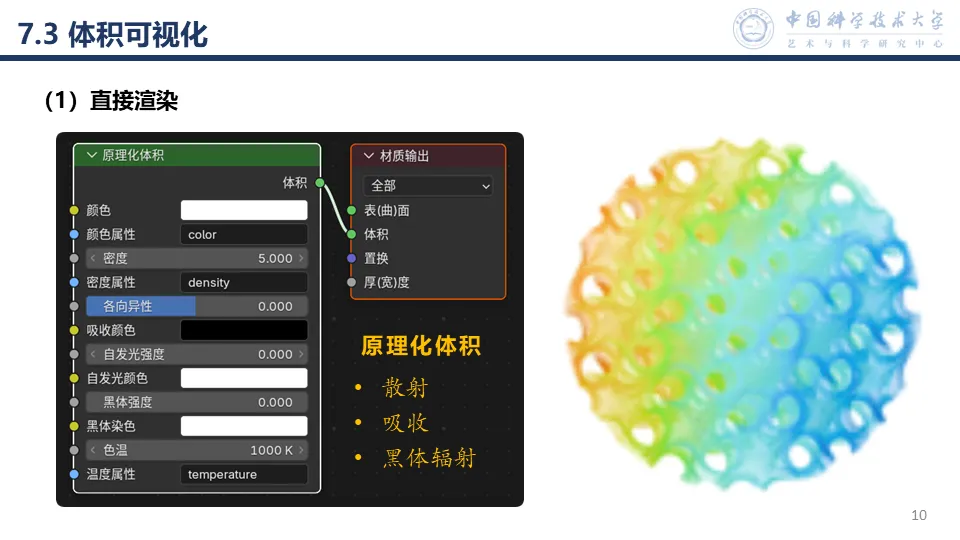

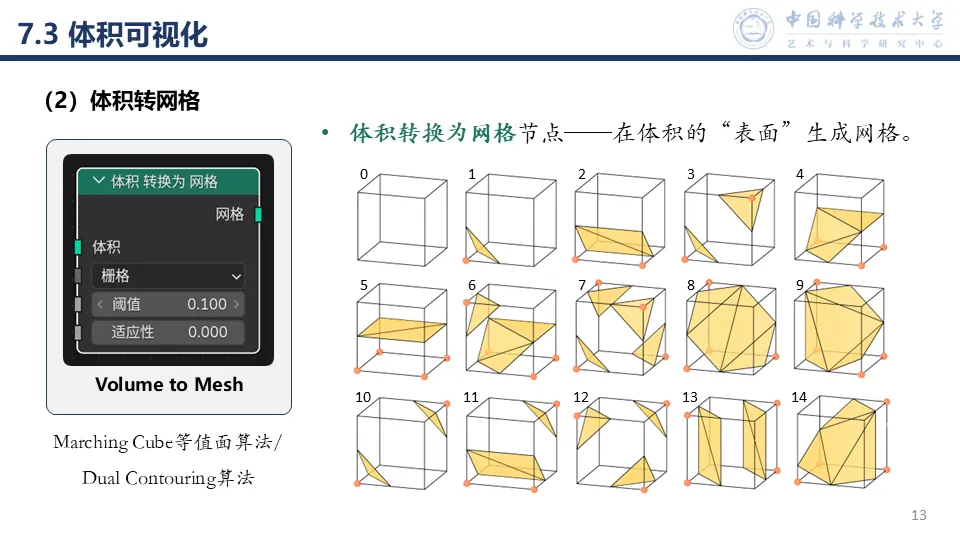

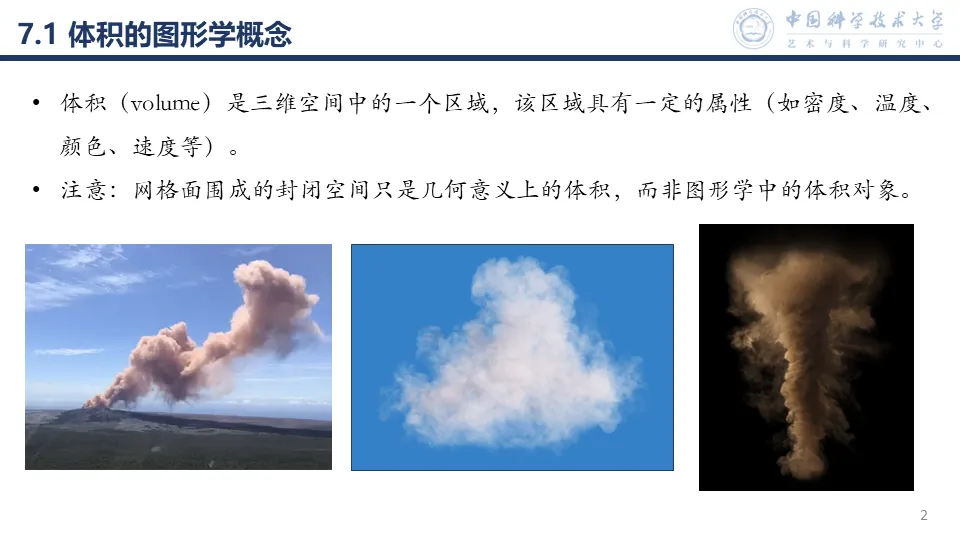

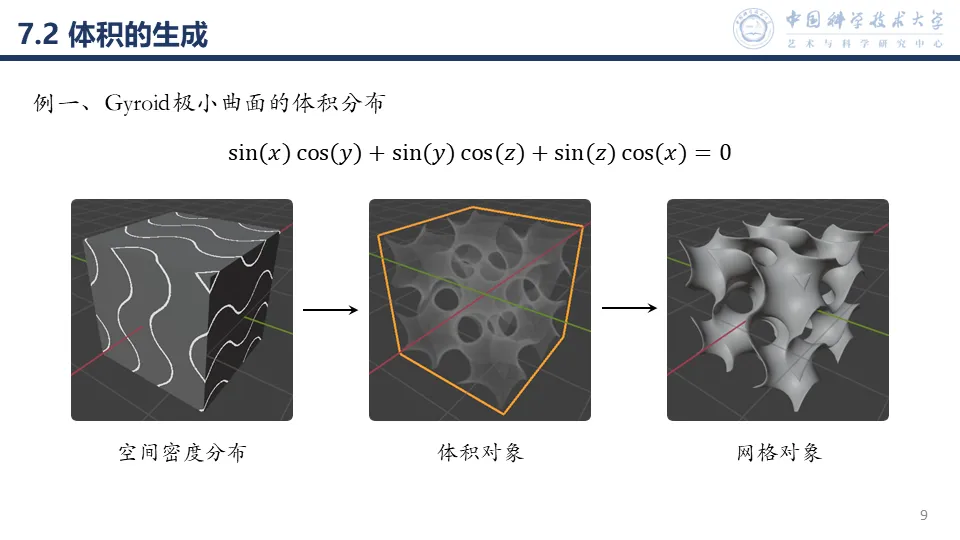

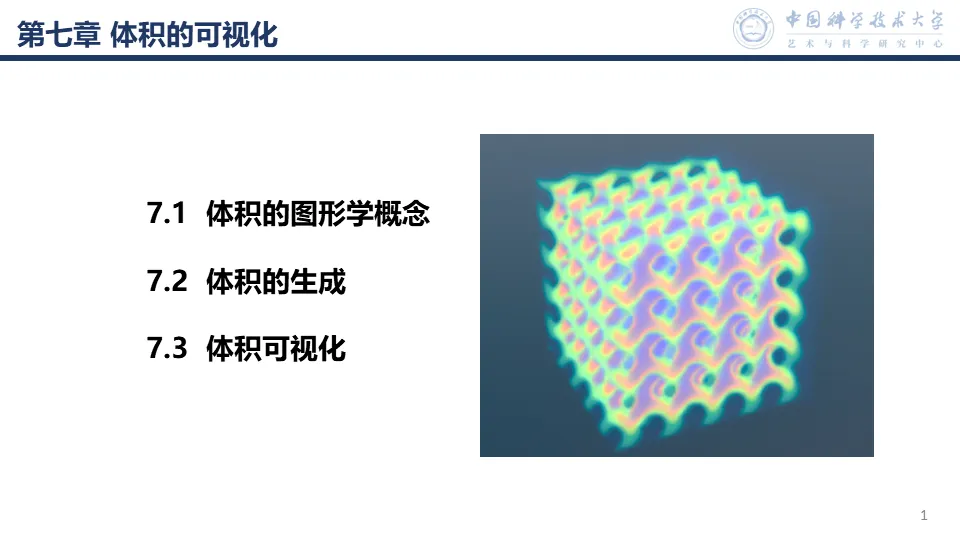

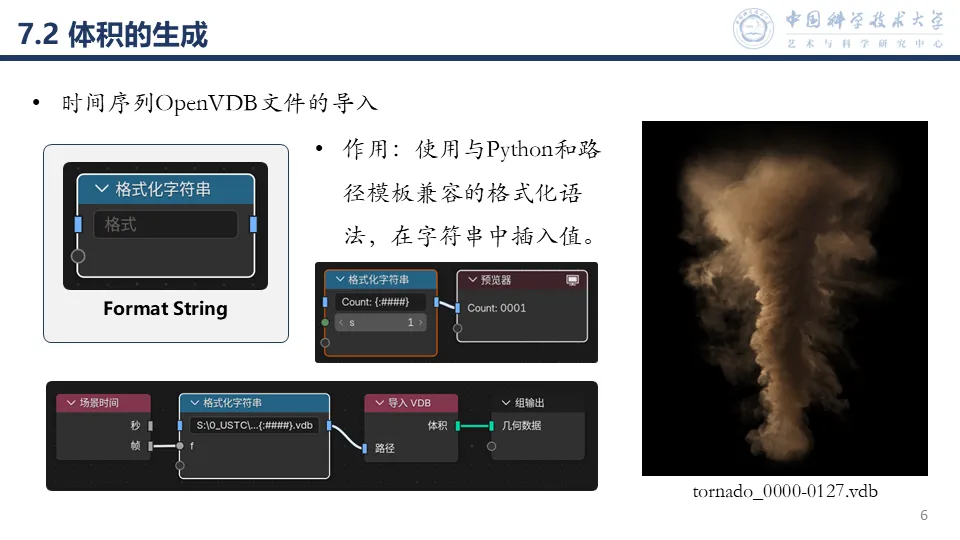

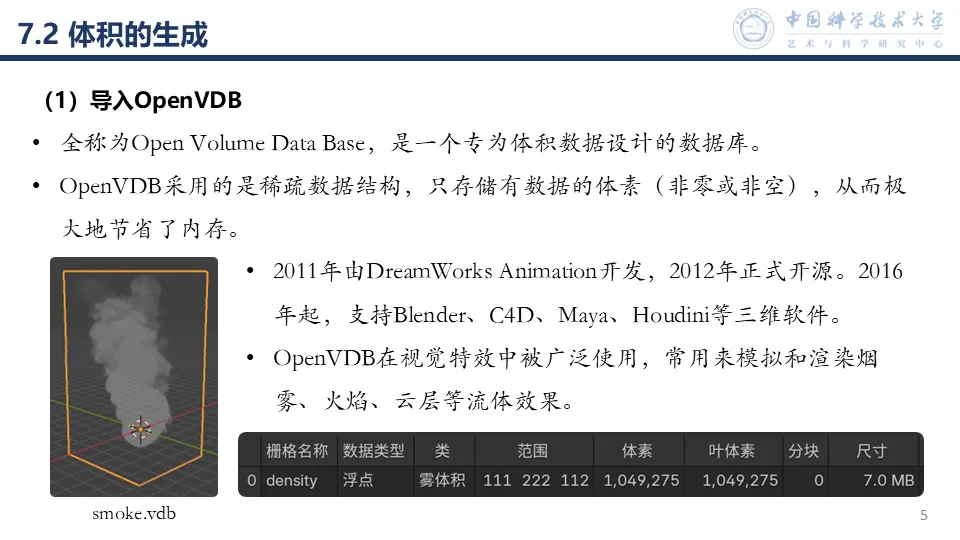

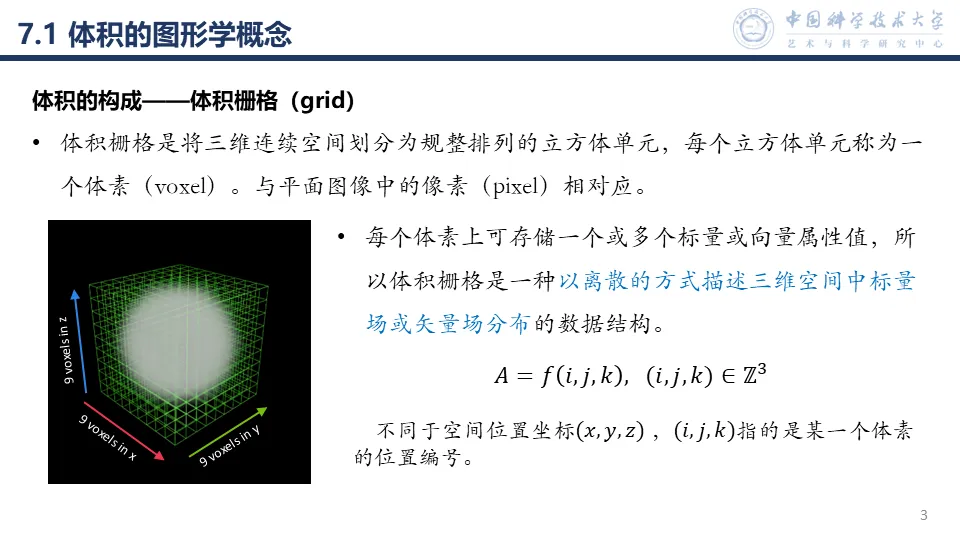

最后一章的内容是《体积的可视化》，这其实是三维图形可视化领域一个比较新的内容。比如OpenVDB格式的体积文件正式被主流三维软件使用距今才不到10年时间。Blender更是到最新的5.0版才全面推出系统的体积可视化节点（包括读取、采样、写入、操作等）。
相比于3ds Max（1996）、Maya（1990）、C4D（1990）等“90后”老牌三维软件，Blender（2000）妥妥的“00后”新起之秀。它一直在紧跟计算机图形学的发展前沿，直到现在都还没有完全定型。因此，这给Blender带来的的优势是软件功能很自由，可以根据自己的需要进行发挥。但这一点同时也是Blender的劣势，它太自由了。如果你没点三维软件的基本功，根本发现不了“原来Blender还可以这么用”！
闲言少叙，下面是最后一章的课件分享——

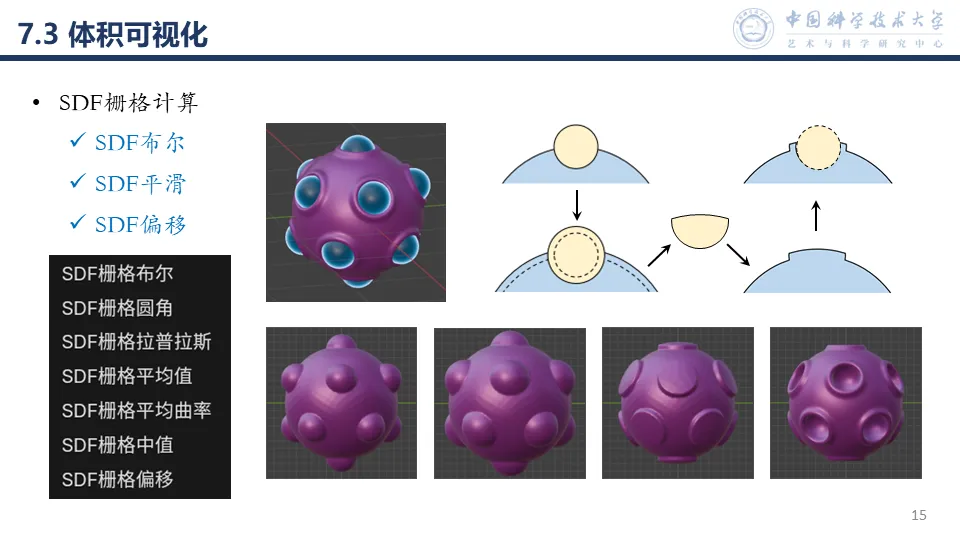

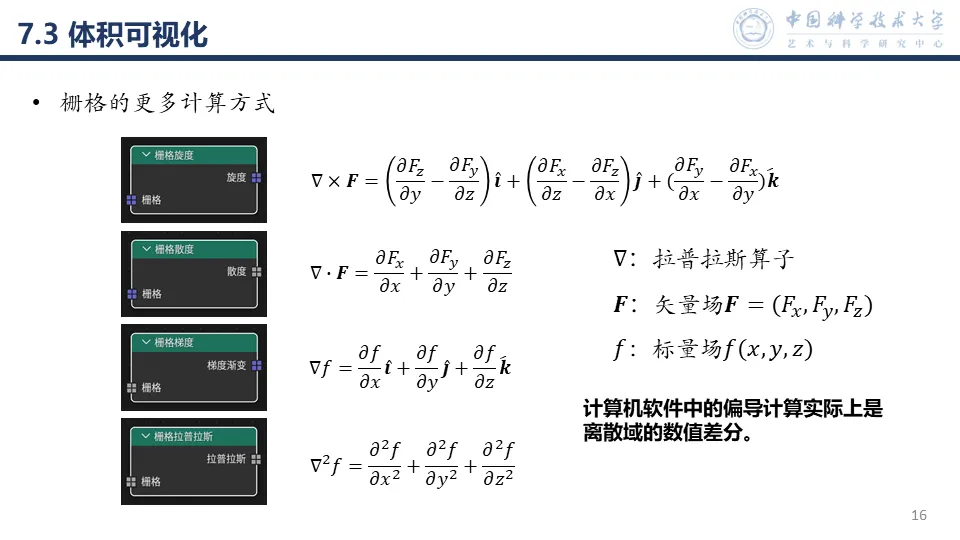

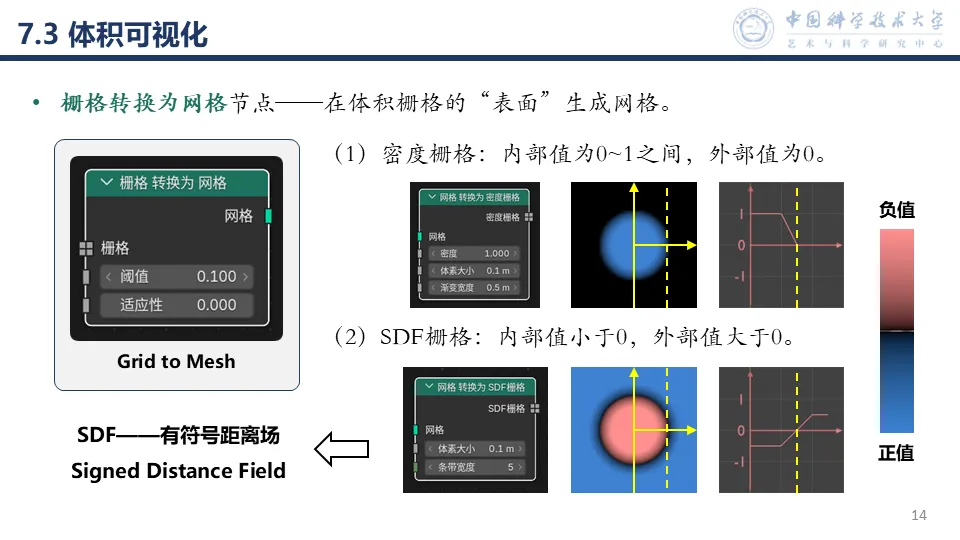

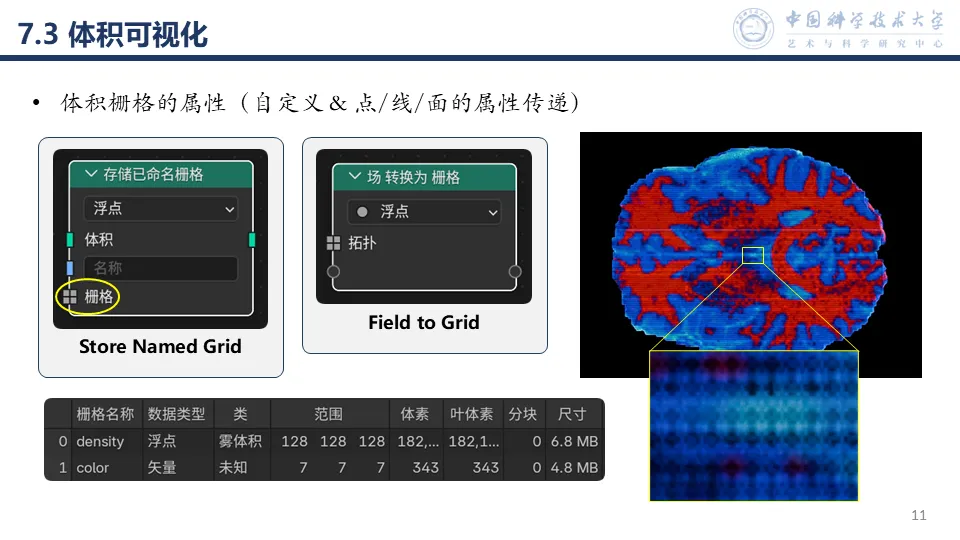

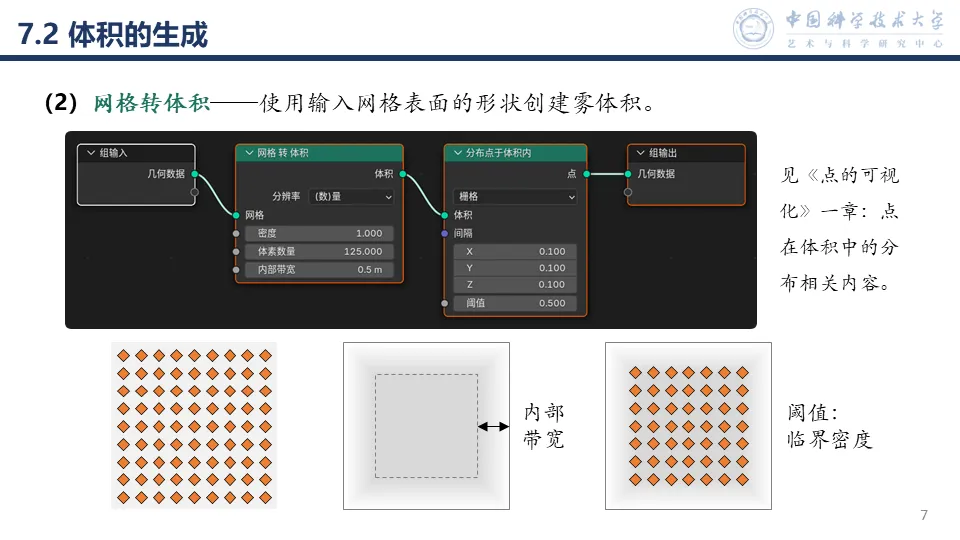

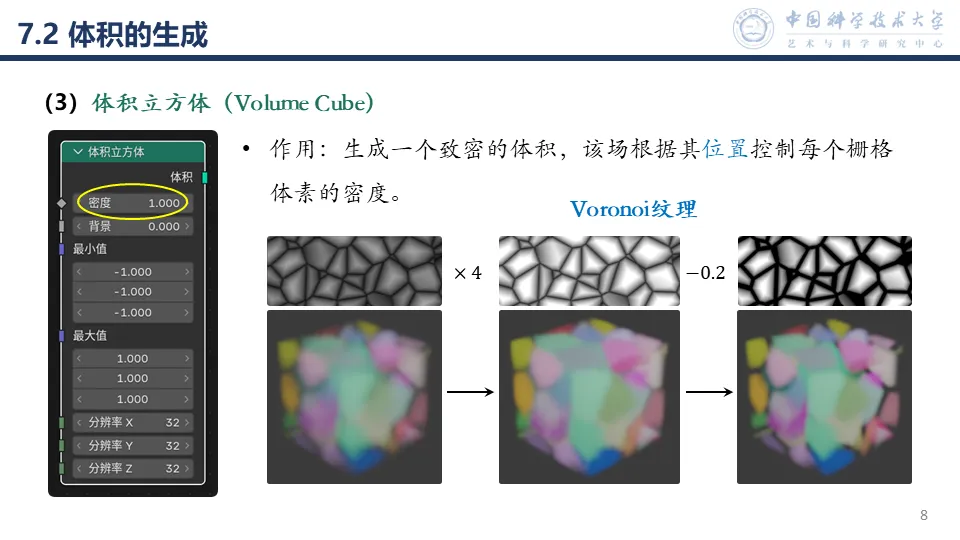

关于体积的可视化有不少内容和新的栅格节点相关，这部分我只做了一个大概的介绍。Blender 5.0发布到现在才过了一个月，好在我对于各类几何图形的数据结构有完整的了解，才能在短时间内摸索出很多新节点的用法，比如“场转换为栅格”、“存储已命名栅格”、“采样栅格”等。
这门课虽然结束了，但很多的细节还要花时间整理。详细的内容我将写进《科研绘图XXXX》一书中，这本书很快就要交稿了（预计明年年中正式出版），想入手的朋友可及时关注本公众号的推文，或者加入上方图片中的“Blender科学可视化”QQ群，同样可获得最新的消息。
再接下来，我将紧锣密鼓地开始ChemBlender 2.0的开发，这一版的主题是“晶体结构可视化”，很多人心心念念的cif文件导入等功能即将到来。敬请期待！
