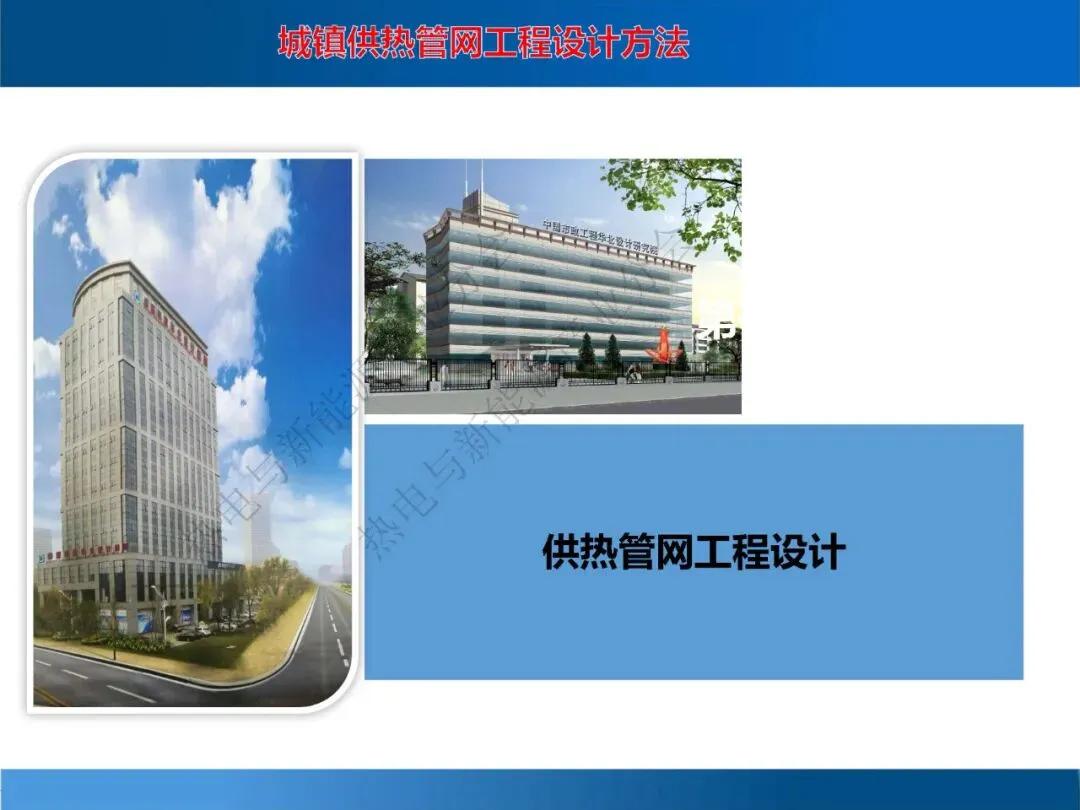

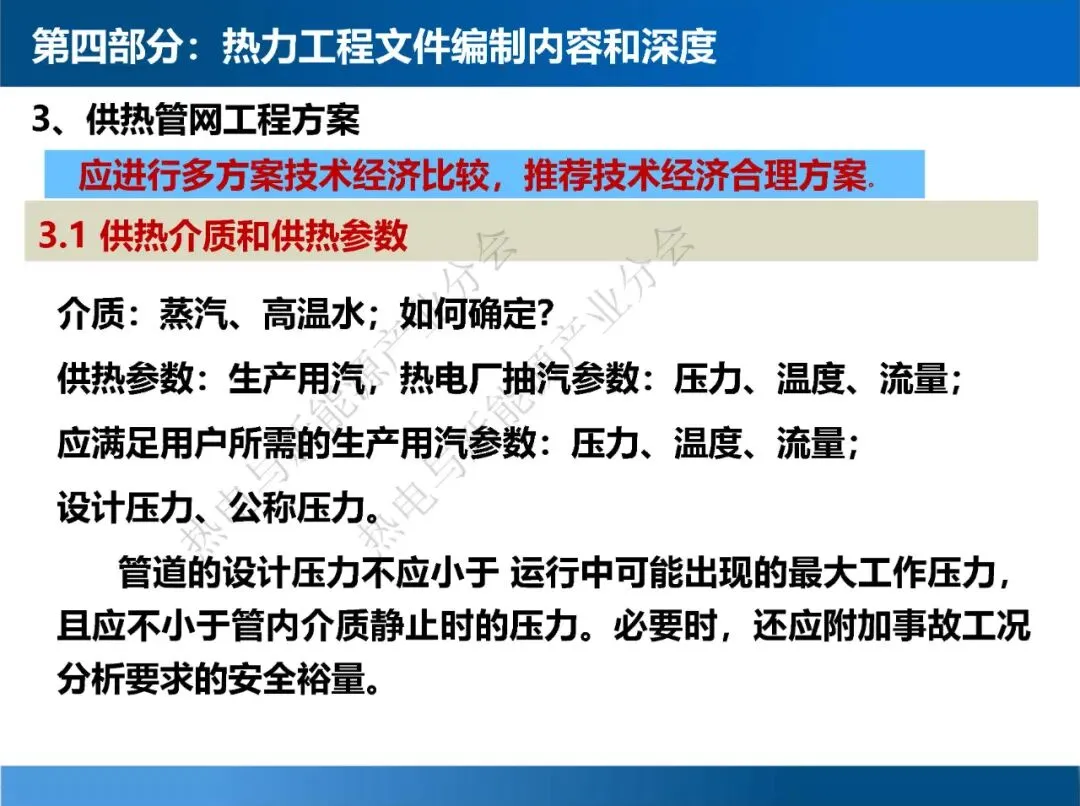

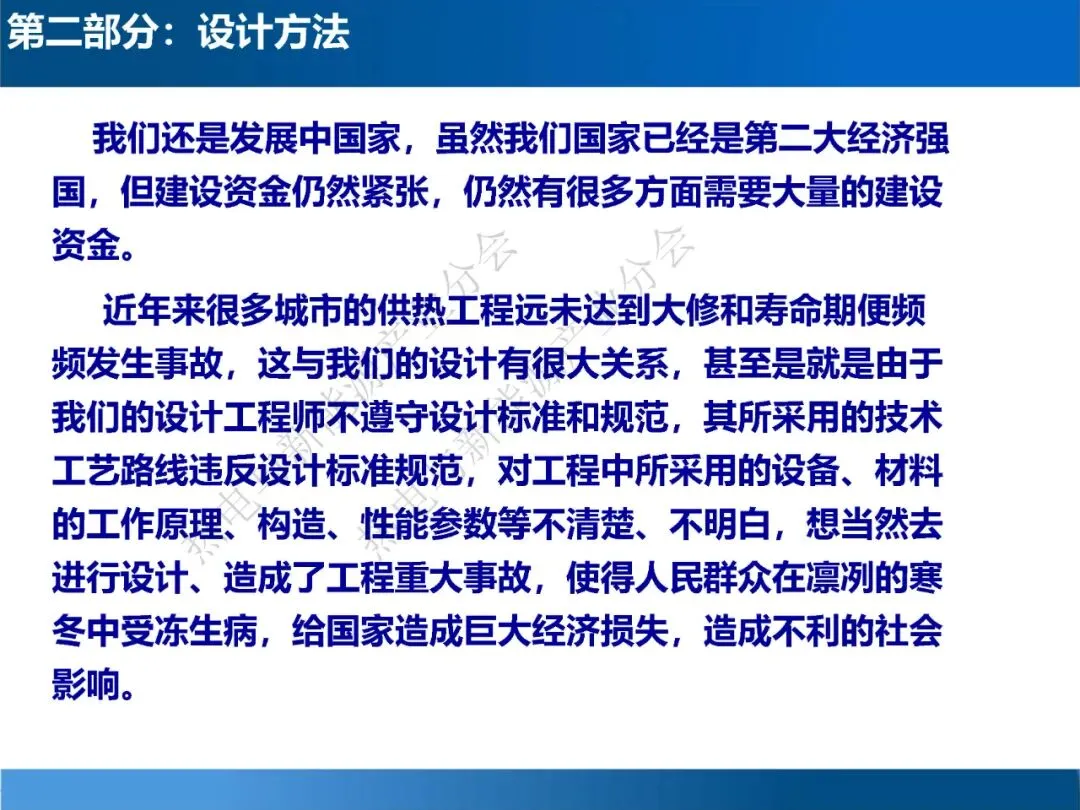

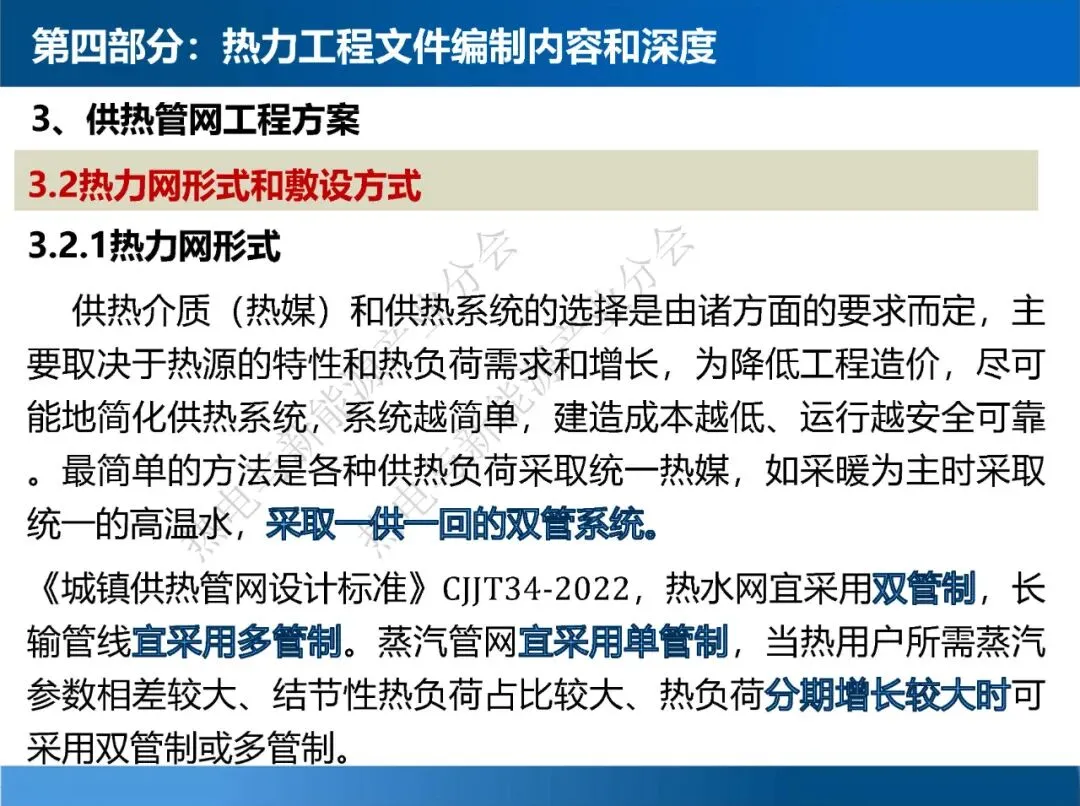

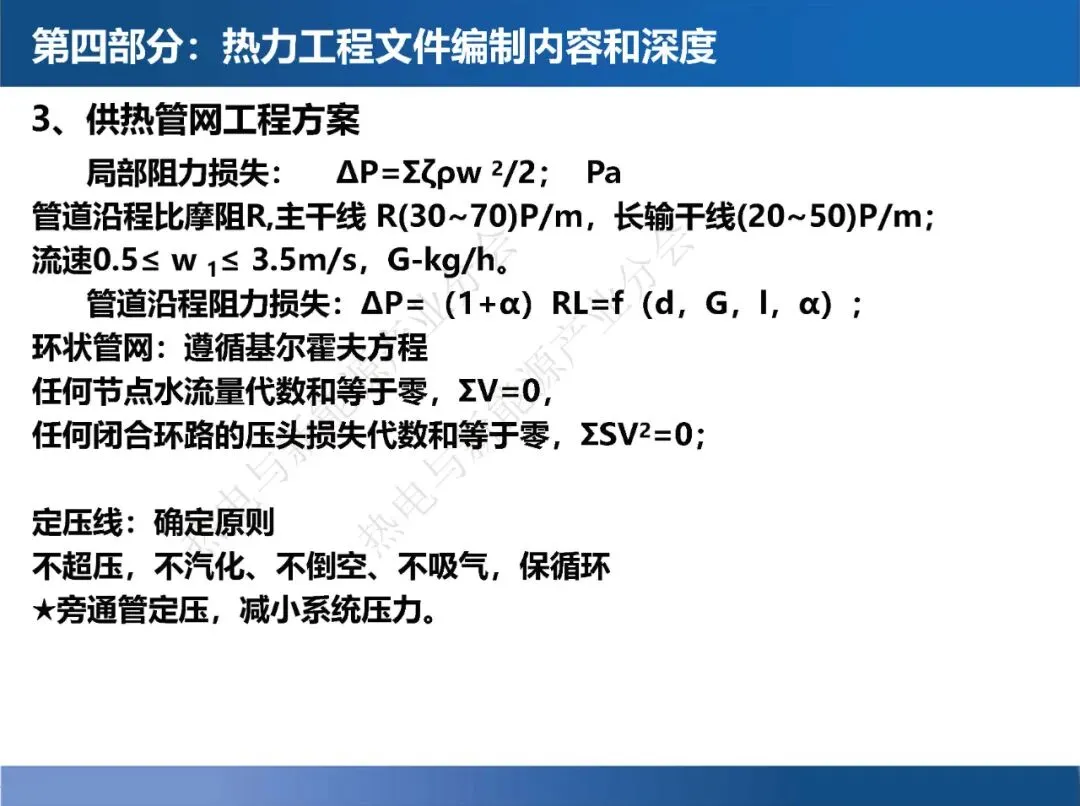

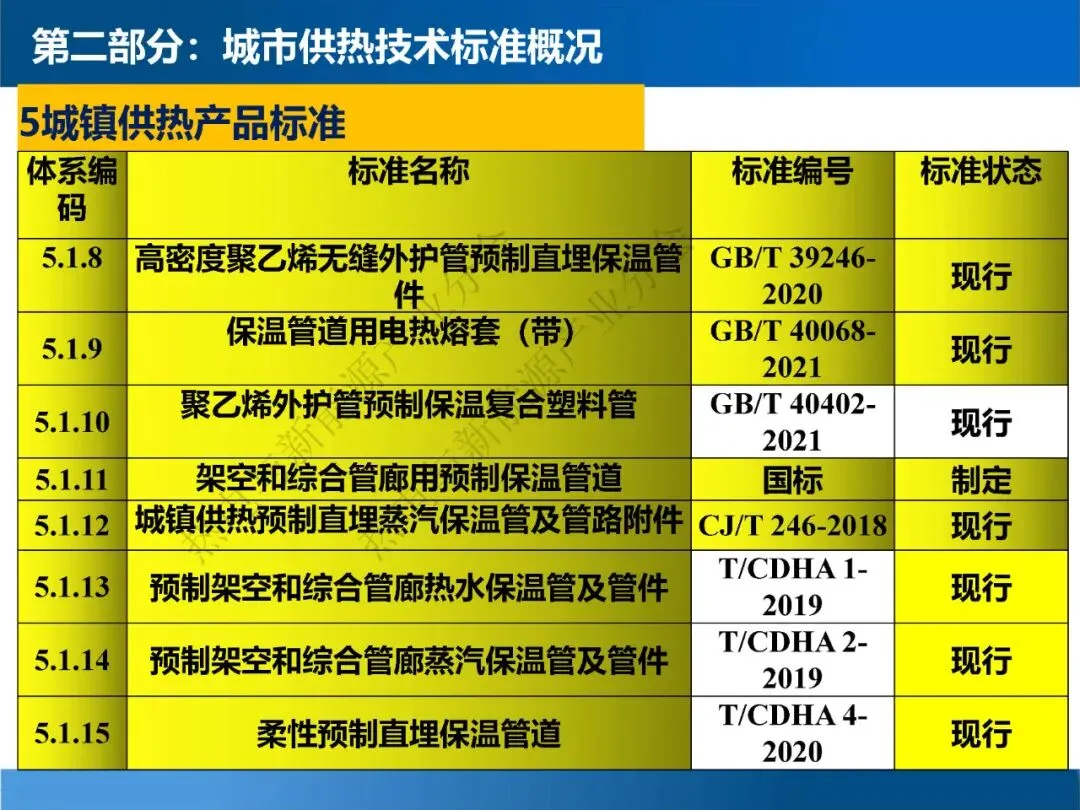

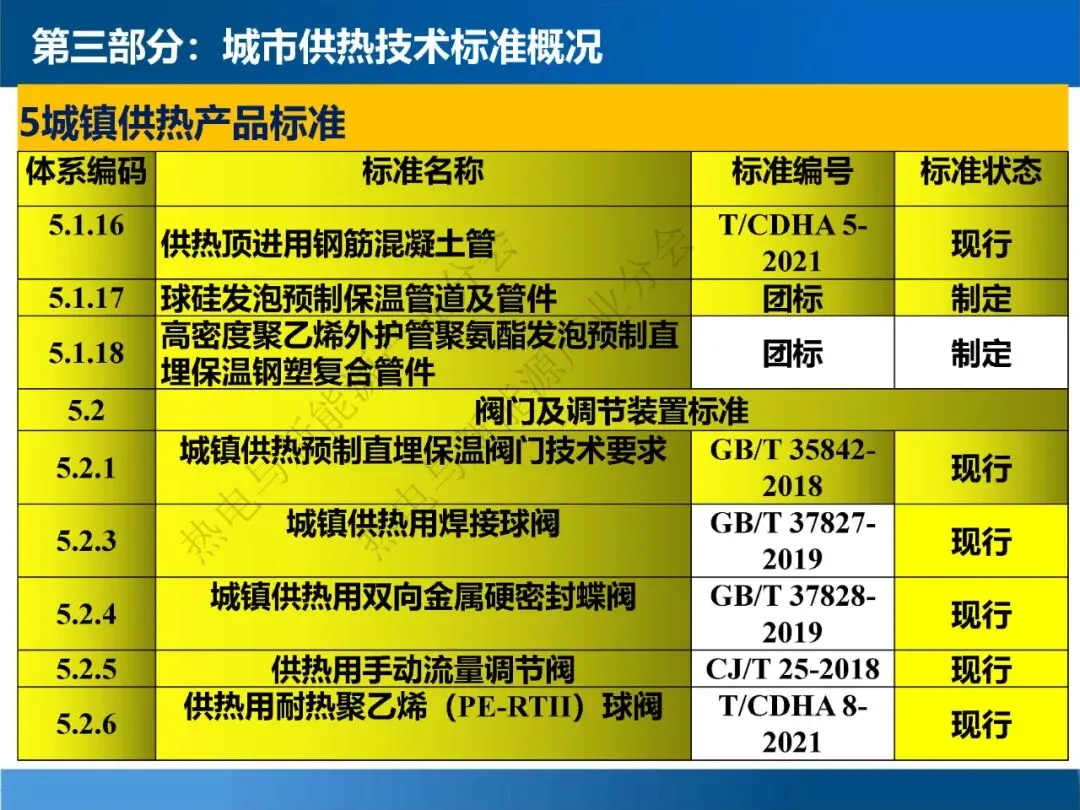

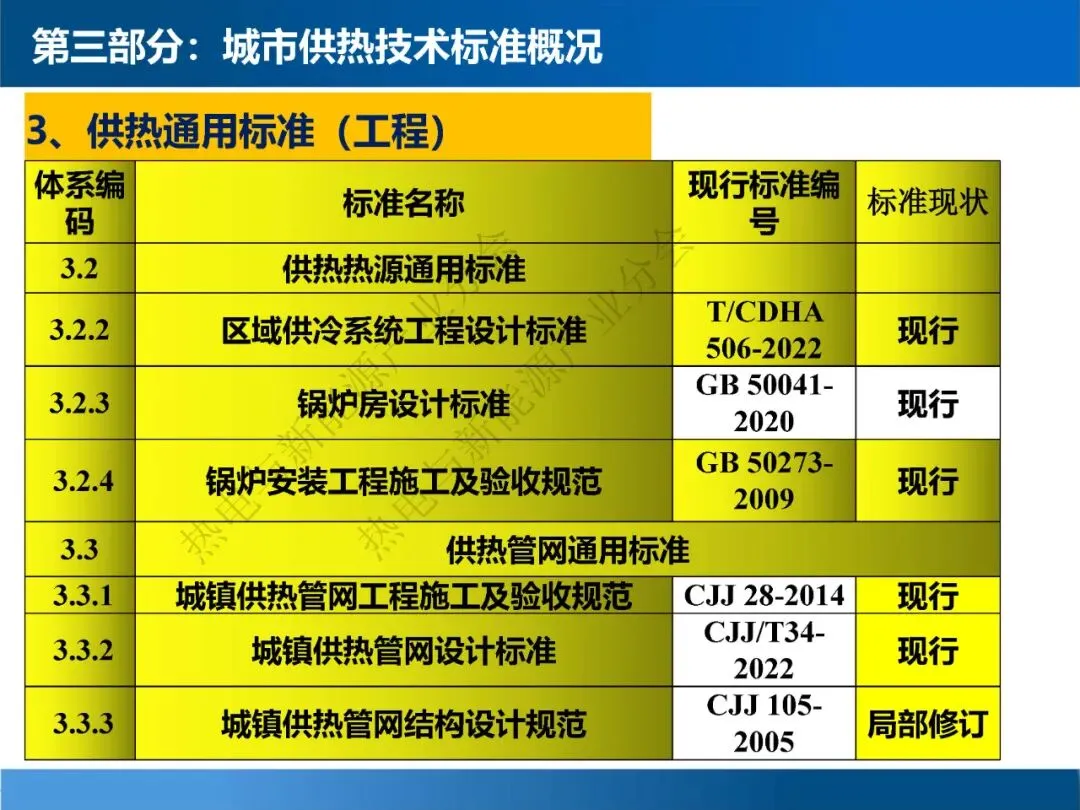

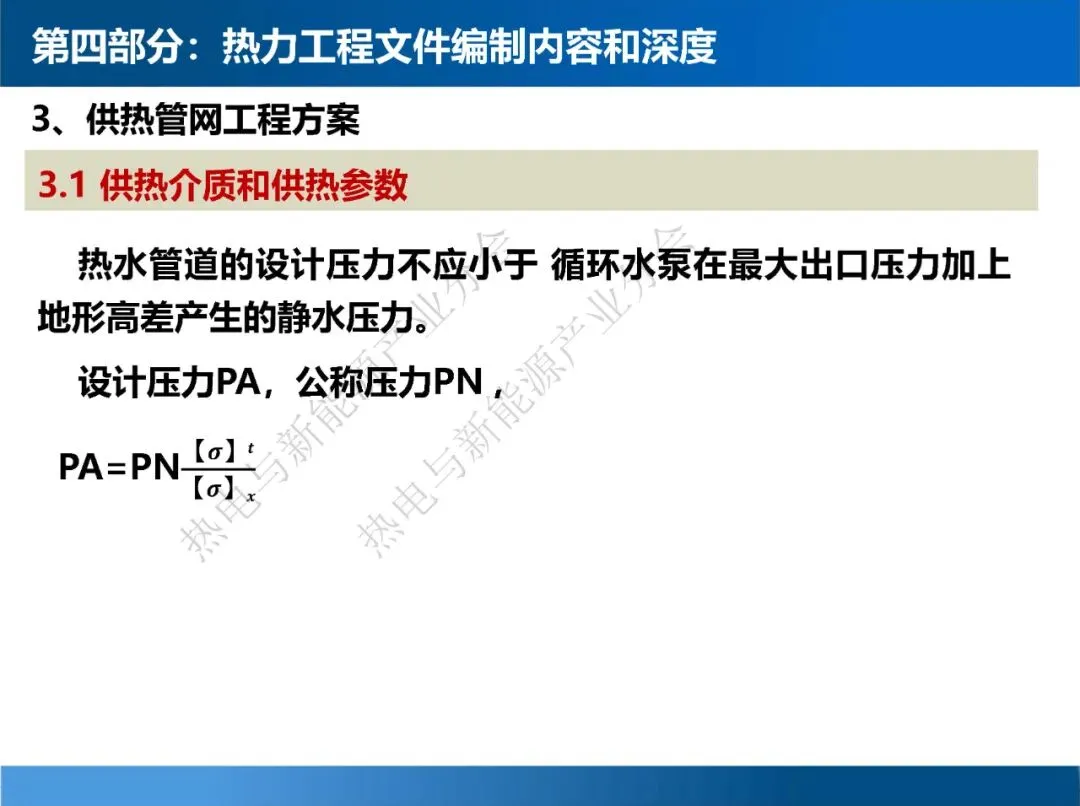

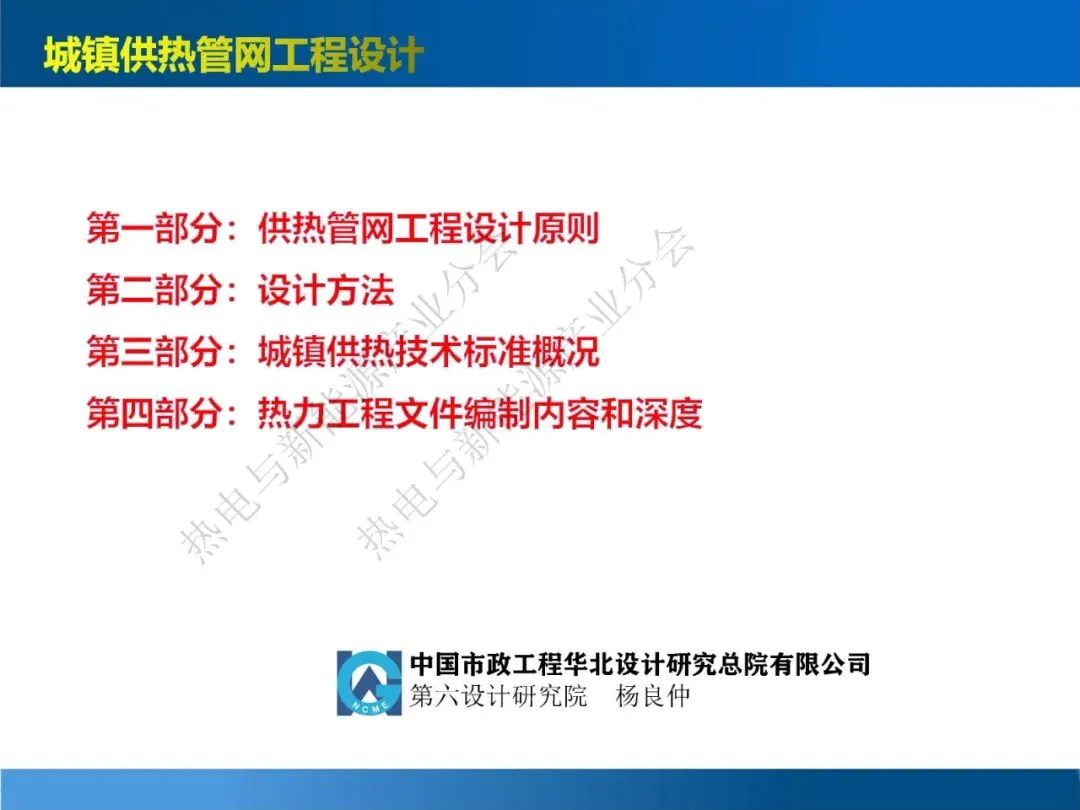

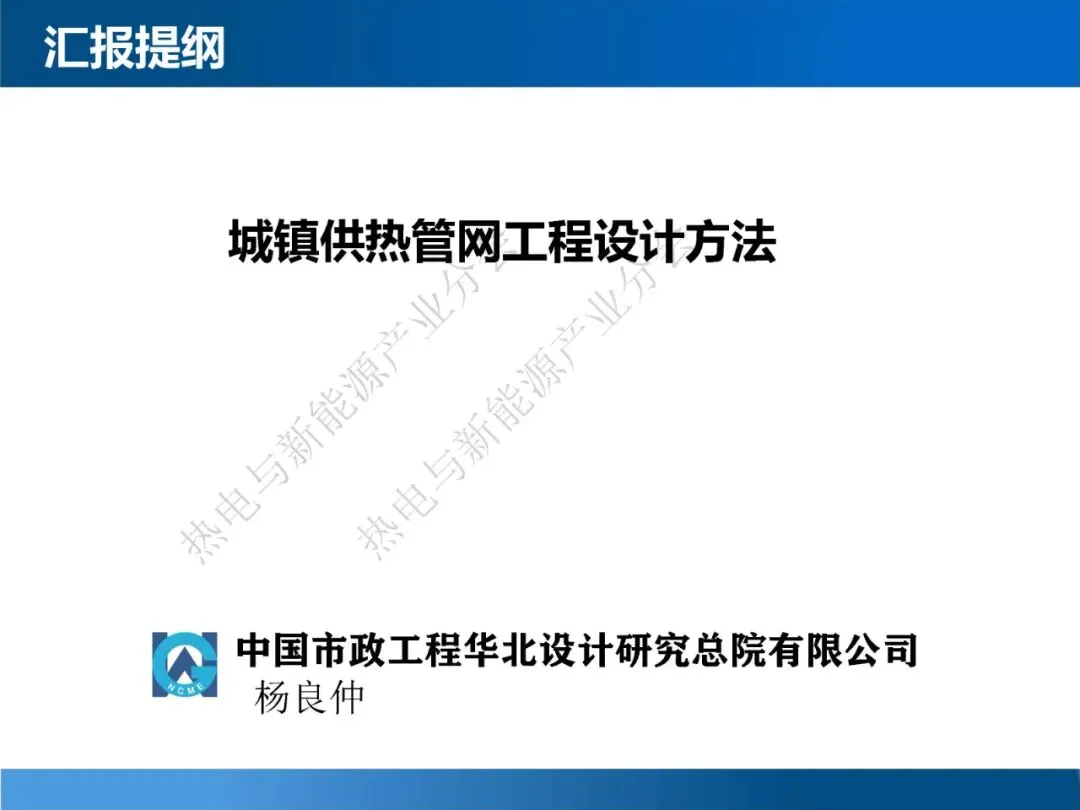

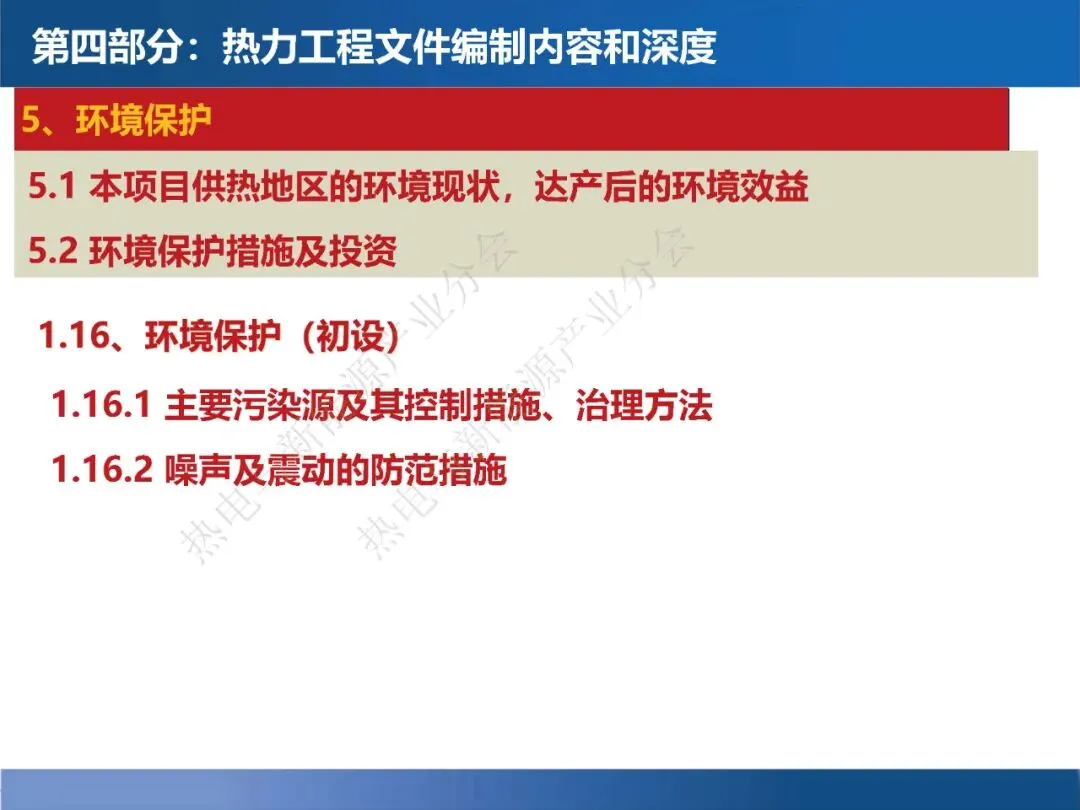

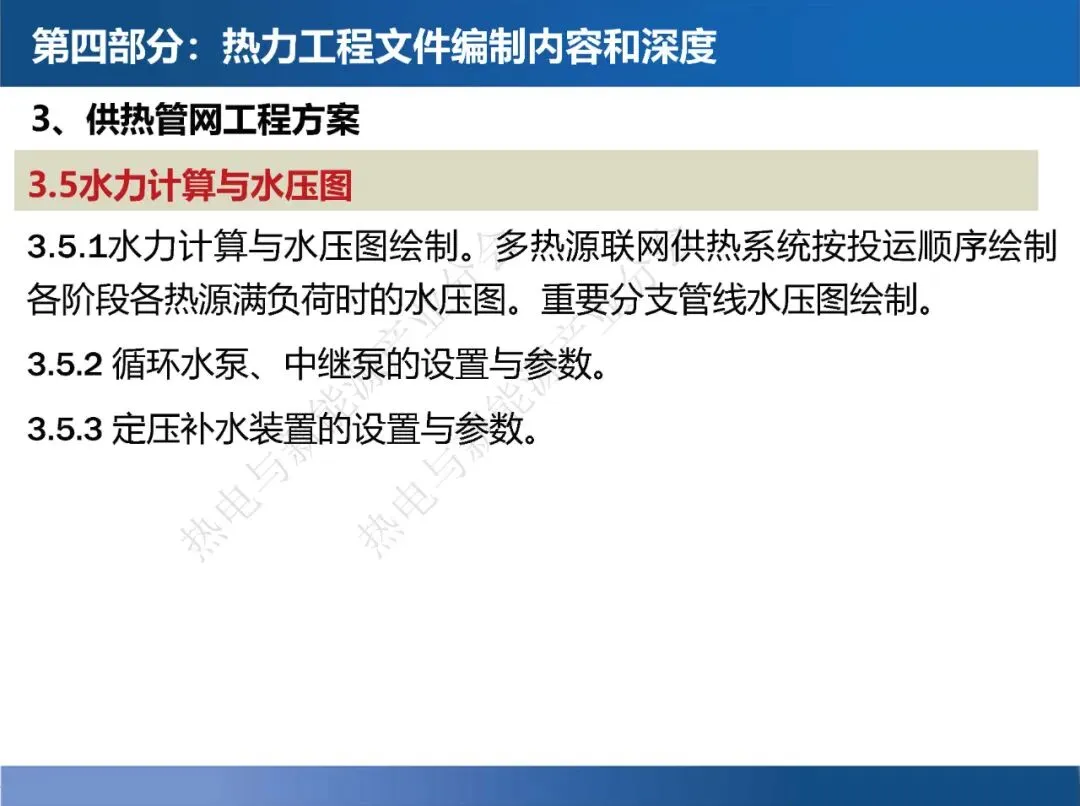

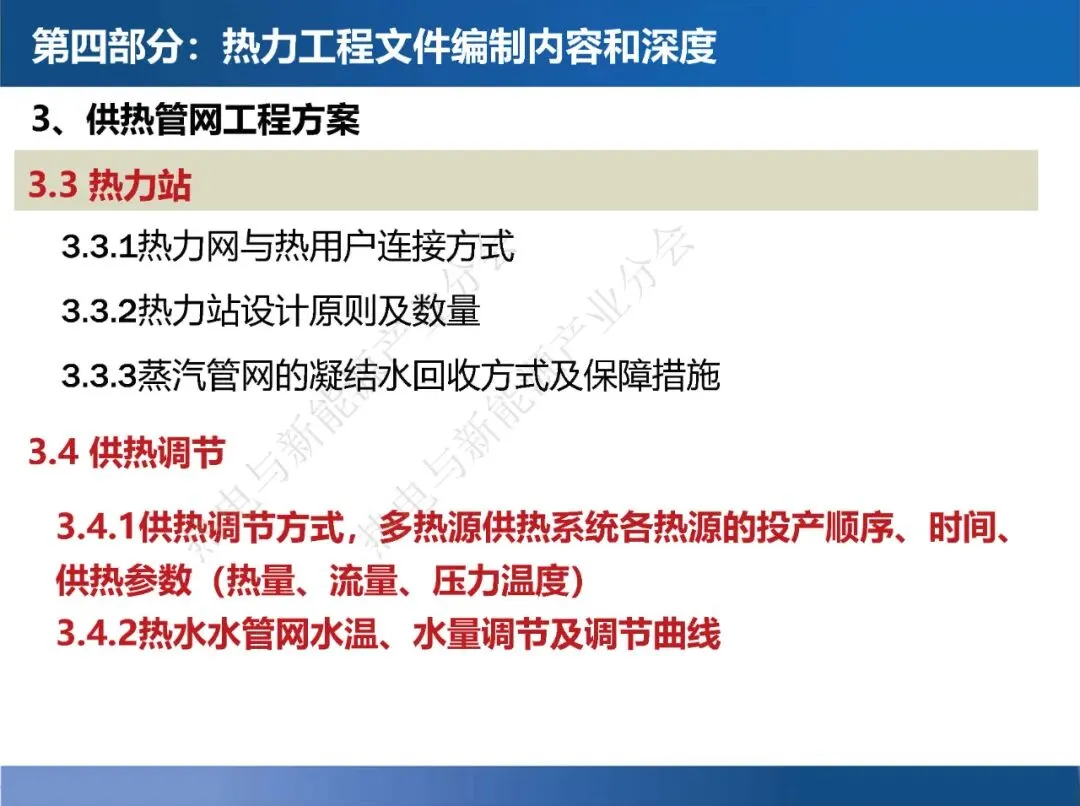

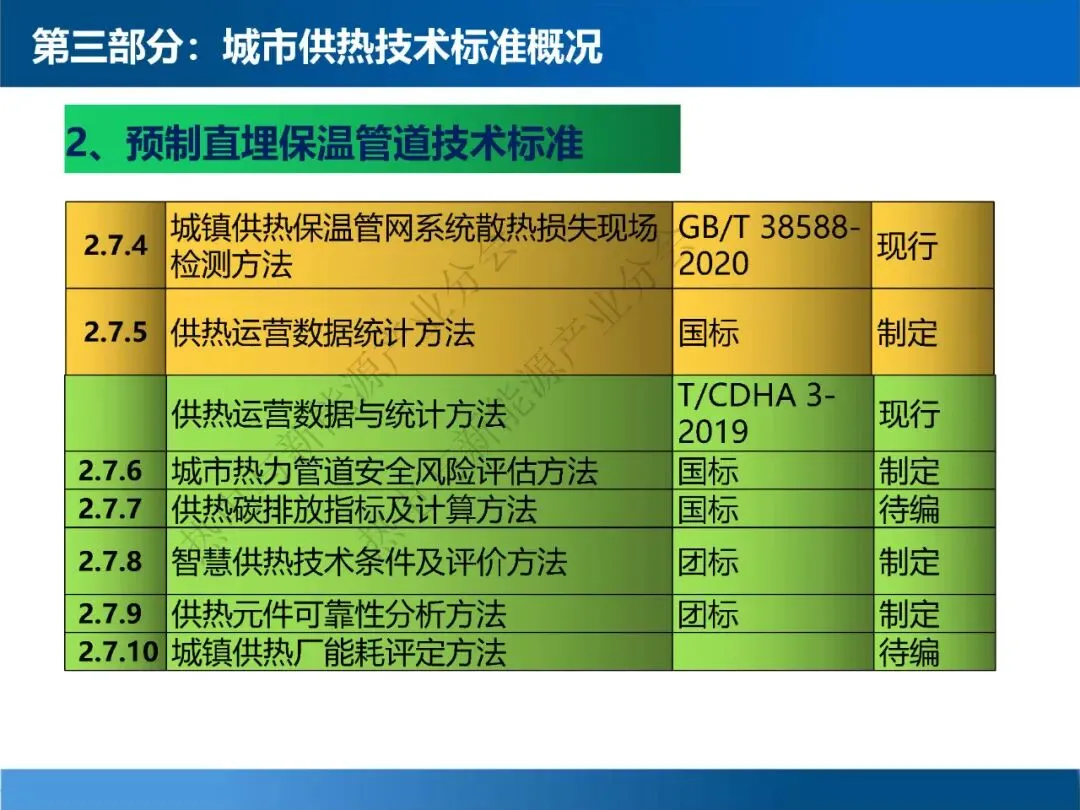

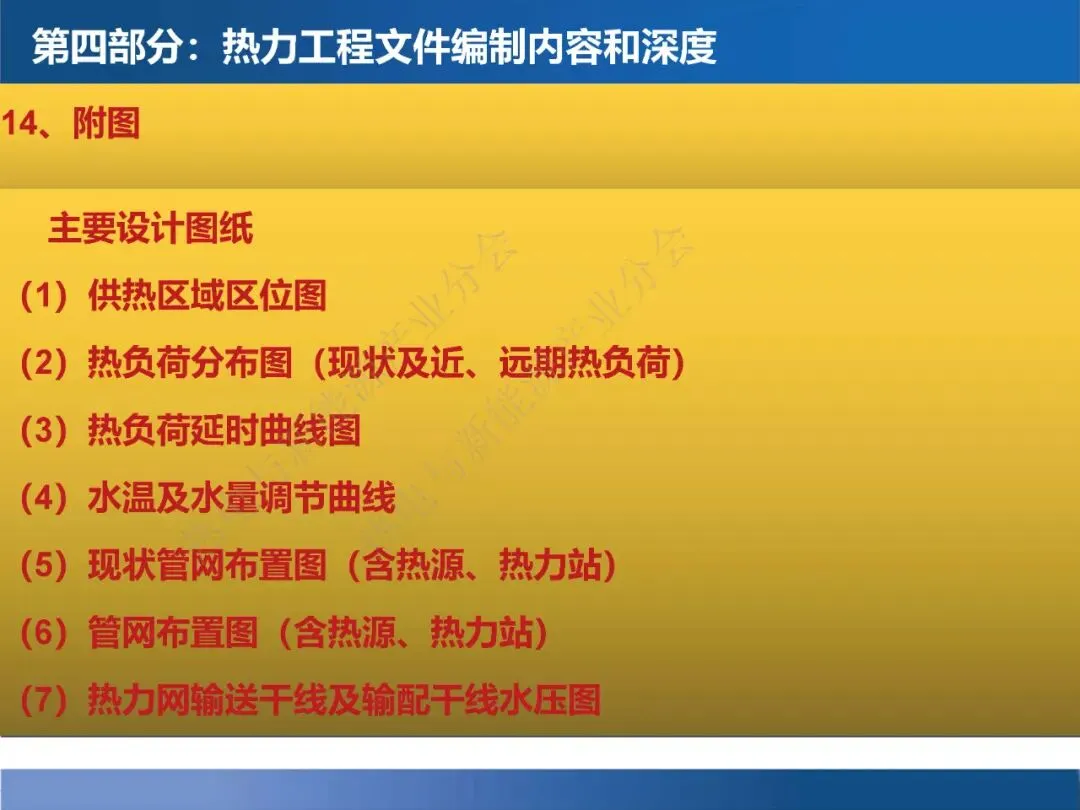

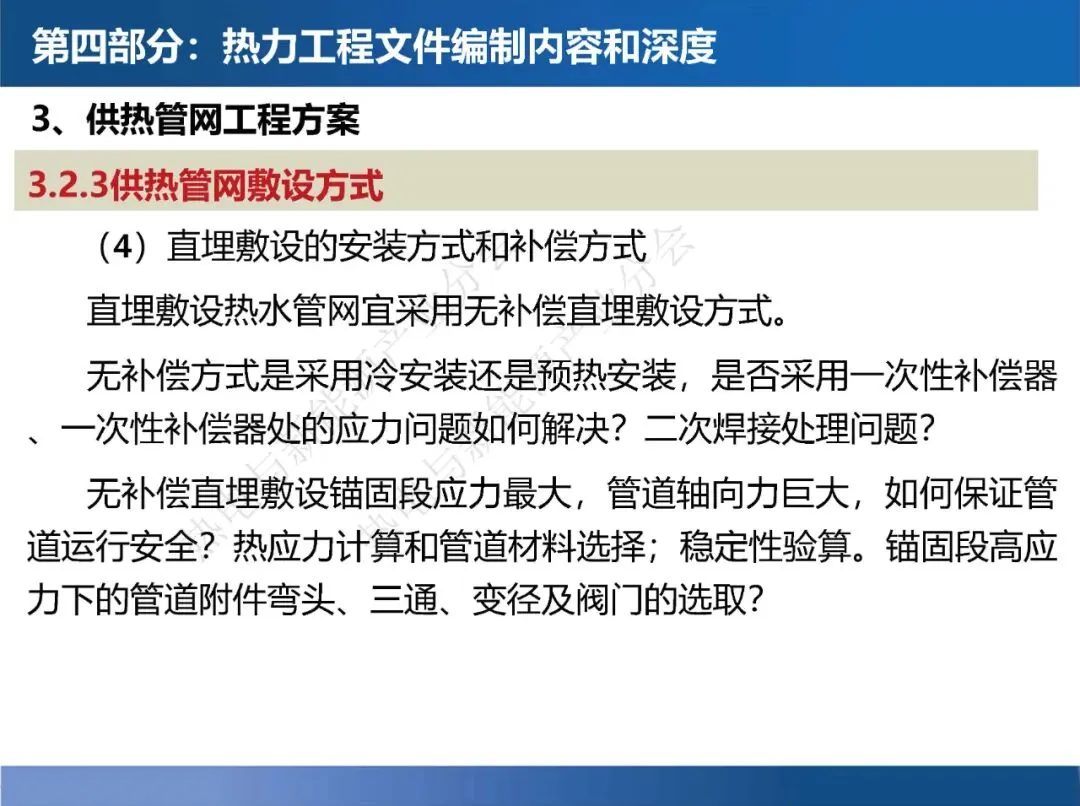

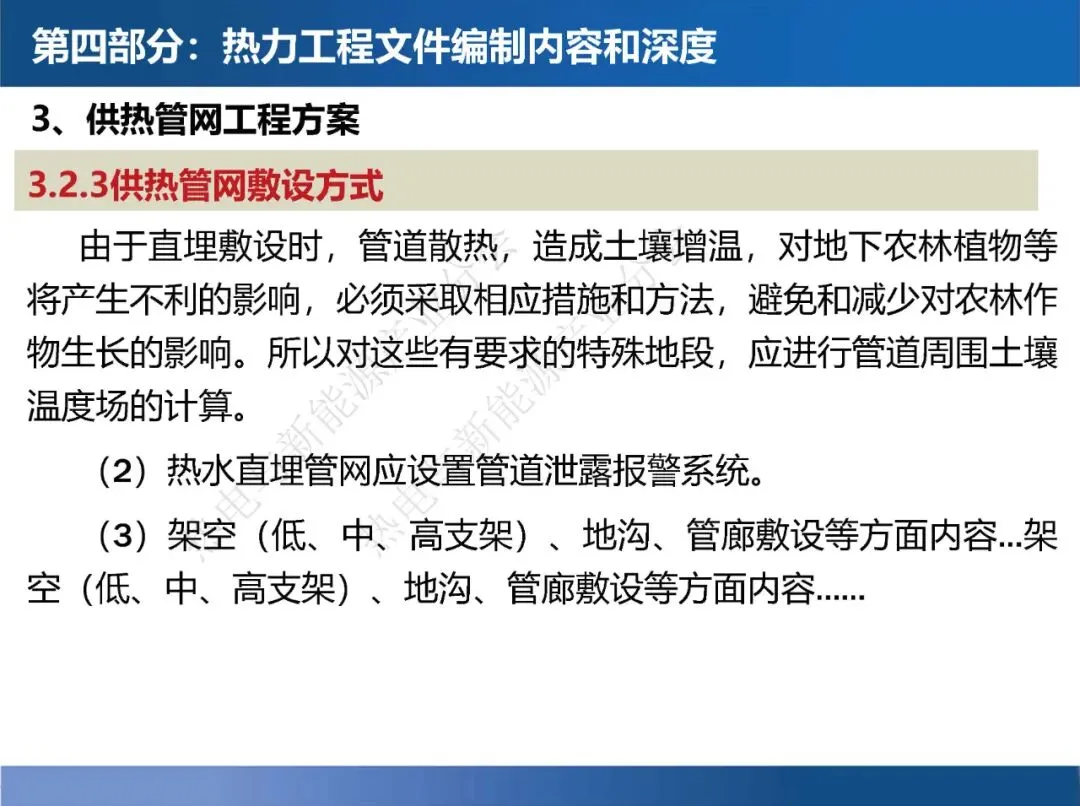

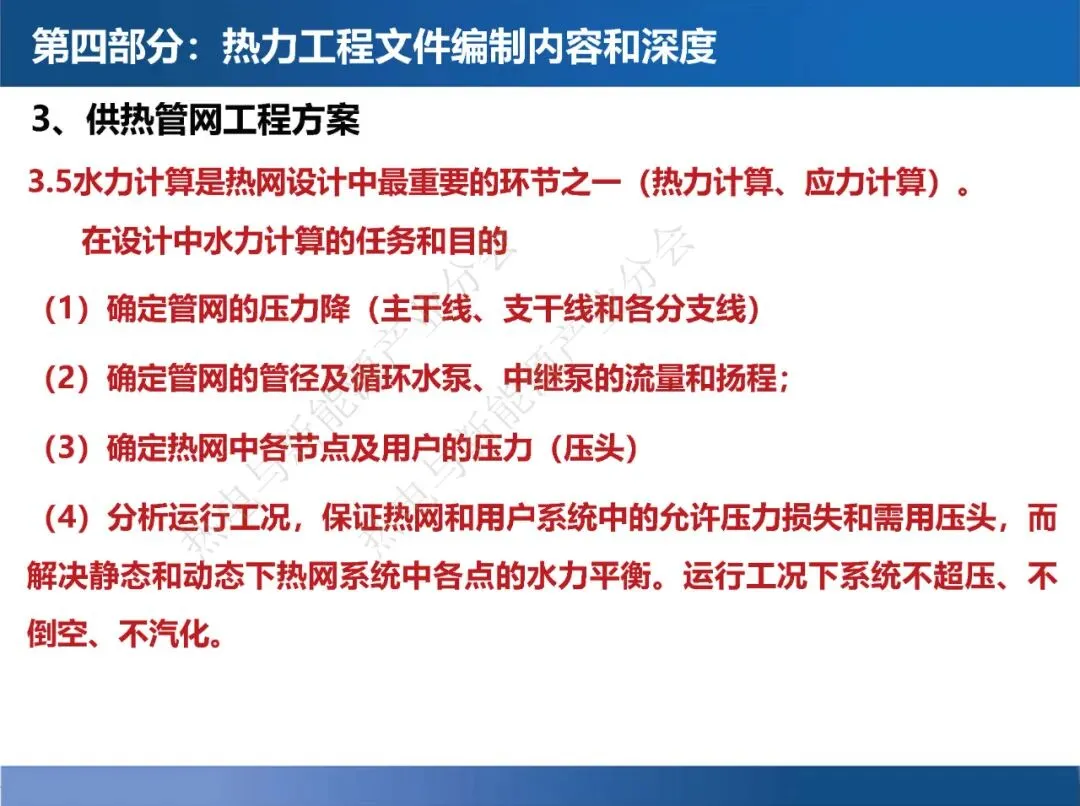

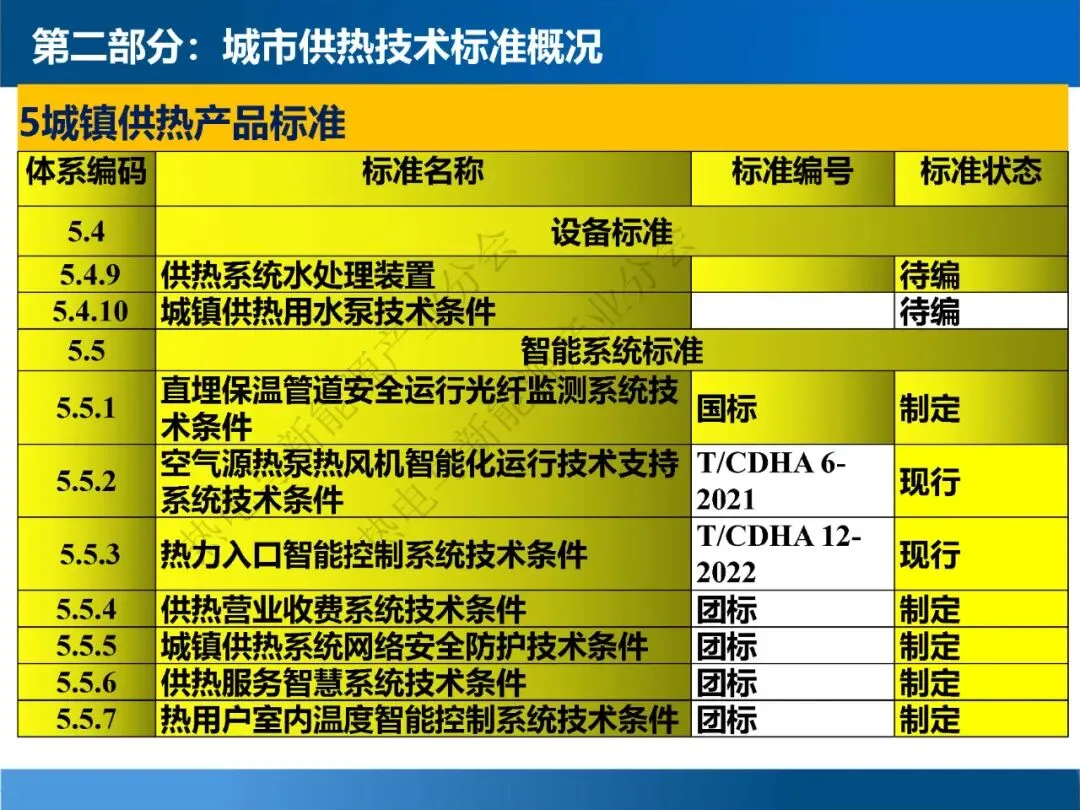

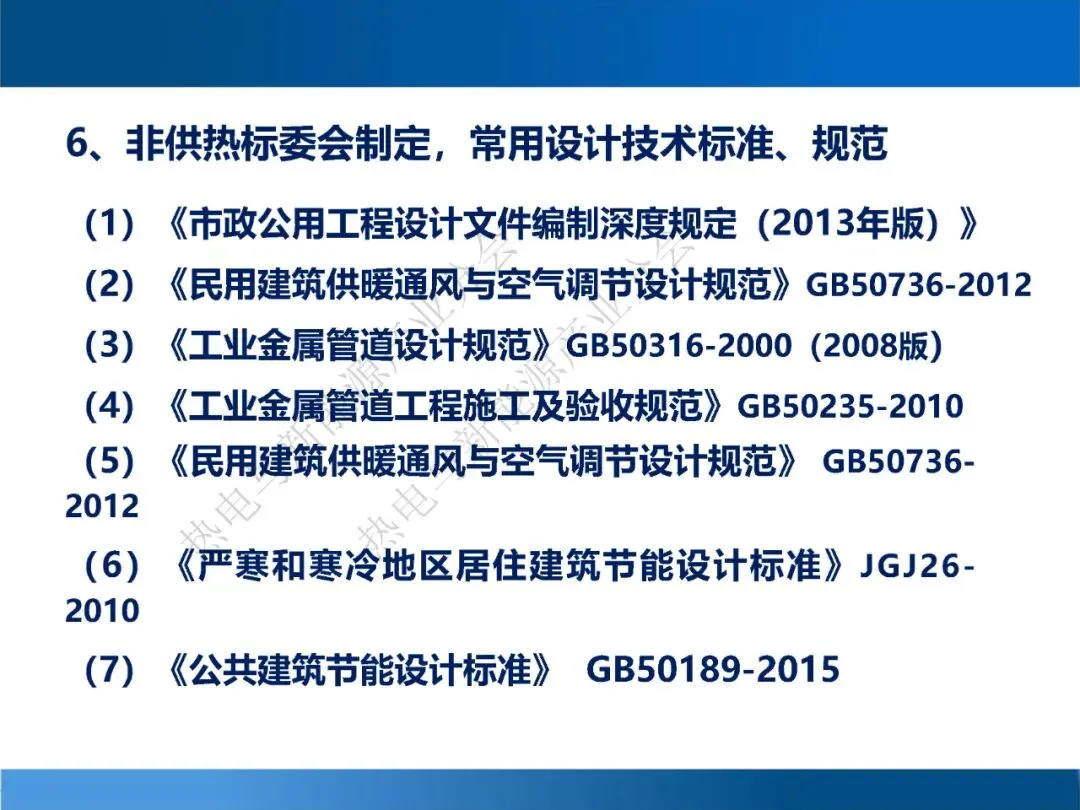

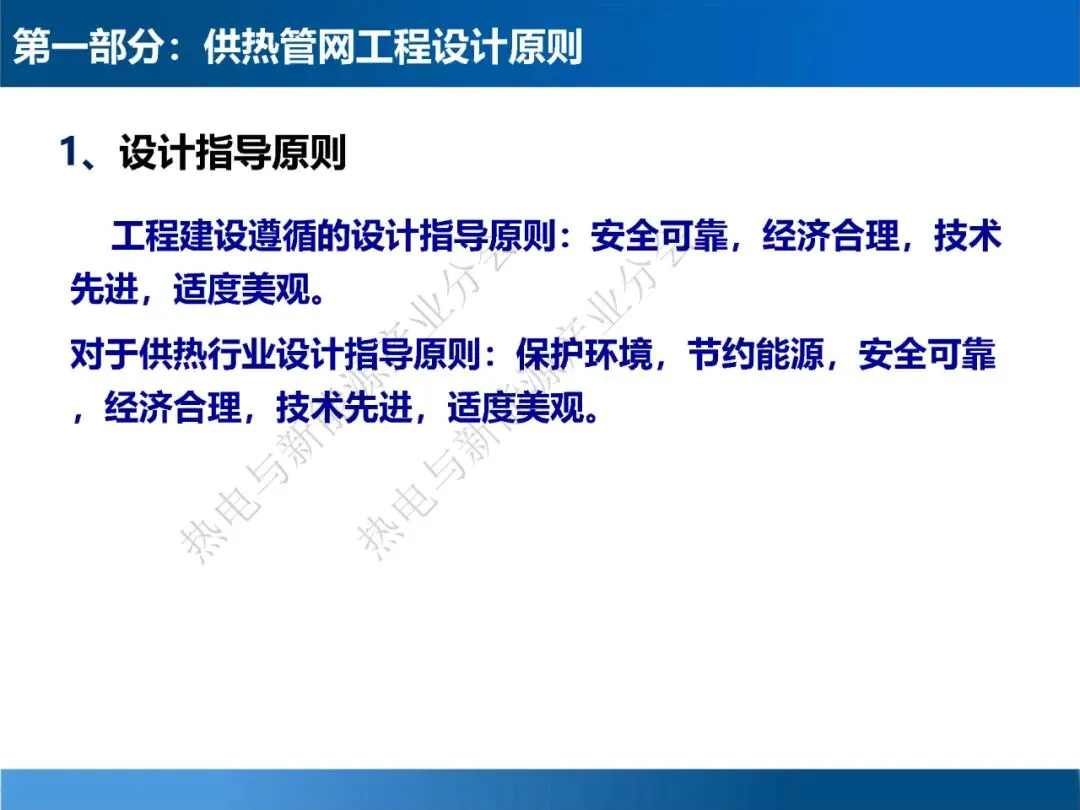

【专家课件】城镇供热管网工程设计方法!

  • 2026-09-24 17:11:25
【专家课件】城镇供热管网工程设计方法!
声明
我们致力于保护作者版权，转载出于传播更多行业资讯之目的，部分作品来自互联网，无法核实真实出处，如涉及侵权，请及时联系我们删除，从该公众号转载本文至其他平台引发的一切纠纷与本平台无关。
