中科大老师的科学可视化课件分享(十一)

  • 2026-04-08 17:41:01
中科大老师的科学可视化课件分享(十一)

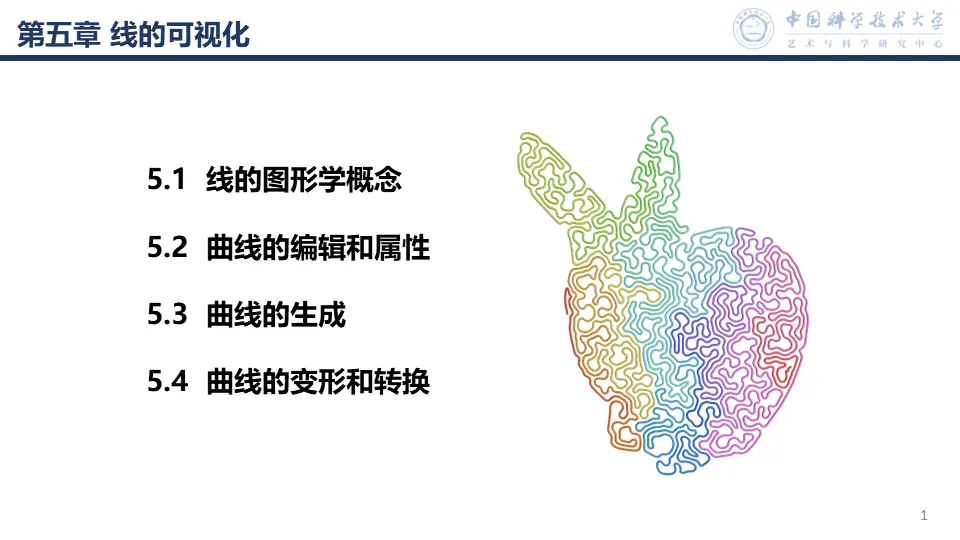

课程终于来到了《线的可视化》一章，剩余的课时数也已经屈指可数。理论课依然是以基础知识为主，最麻烦的还是演示案例的选择。既要鲜明地体现出每个知识点的特点，又不能过于复杂占据太多的课堂时间。

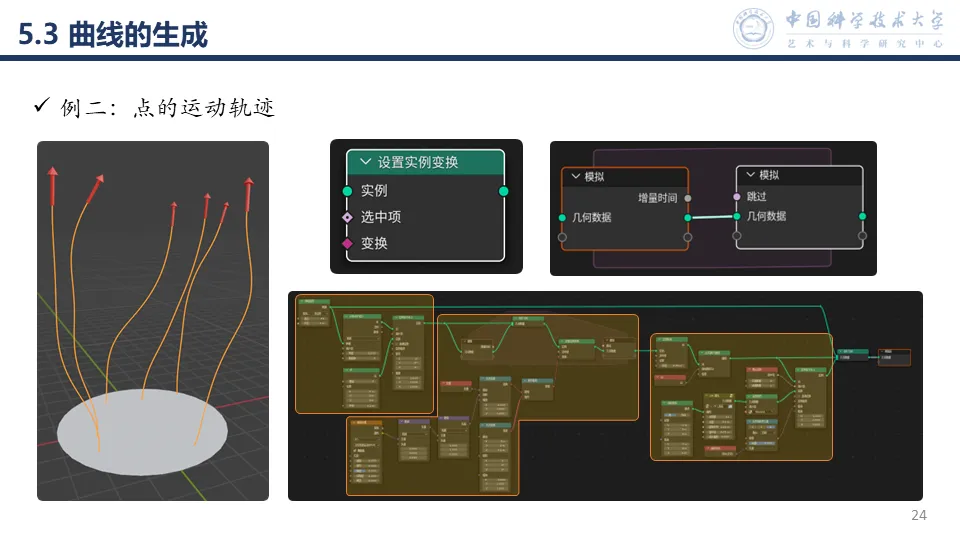

今天尝试讲了一个稍显复杂的案例——点的运动轨迹。提前练了三四遍，课堂演示效果尚可。时间也把握得刚刚好，在下课前几分钟讲完。很明显同学们对具体的案例更感兴趣，但基础知识点又不能跳过，只能在两者间找平衡了。

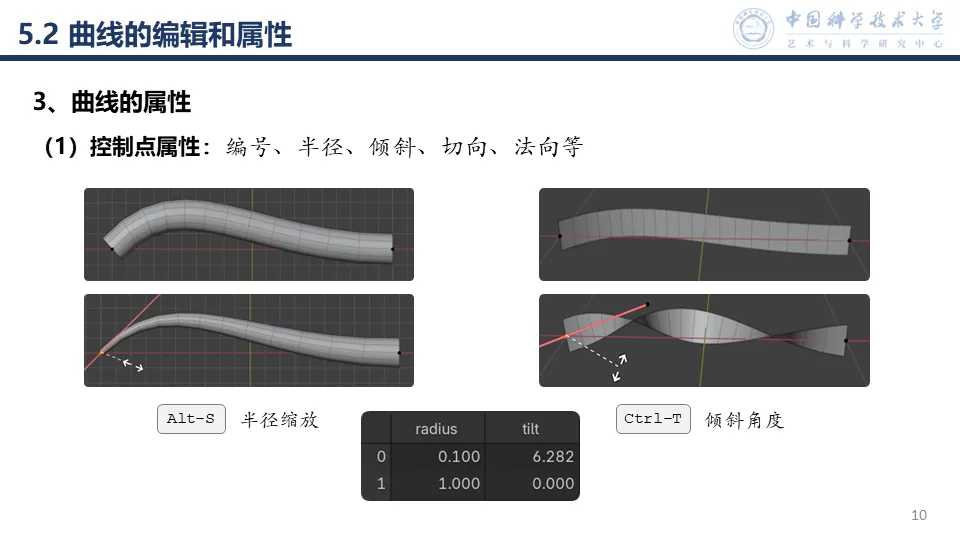

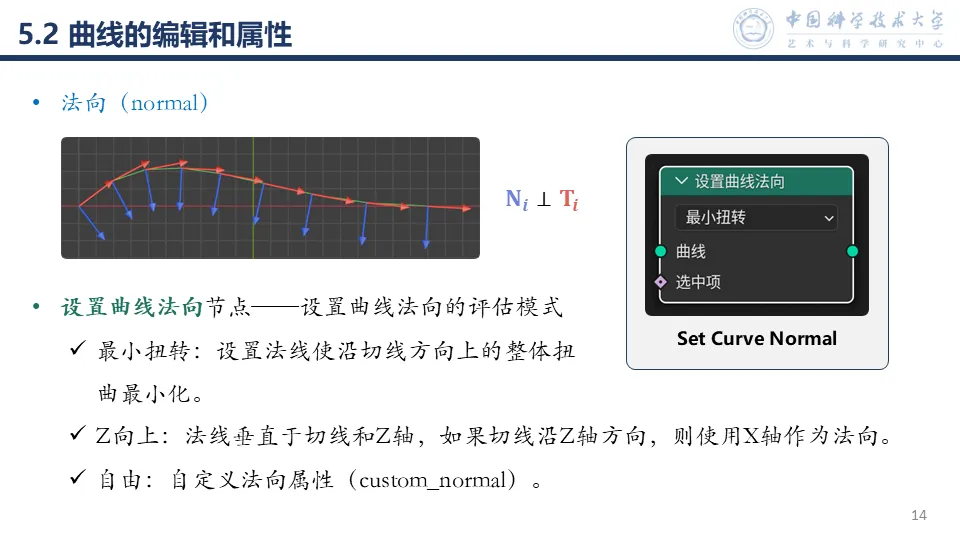

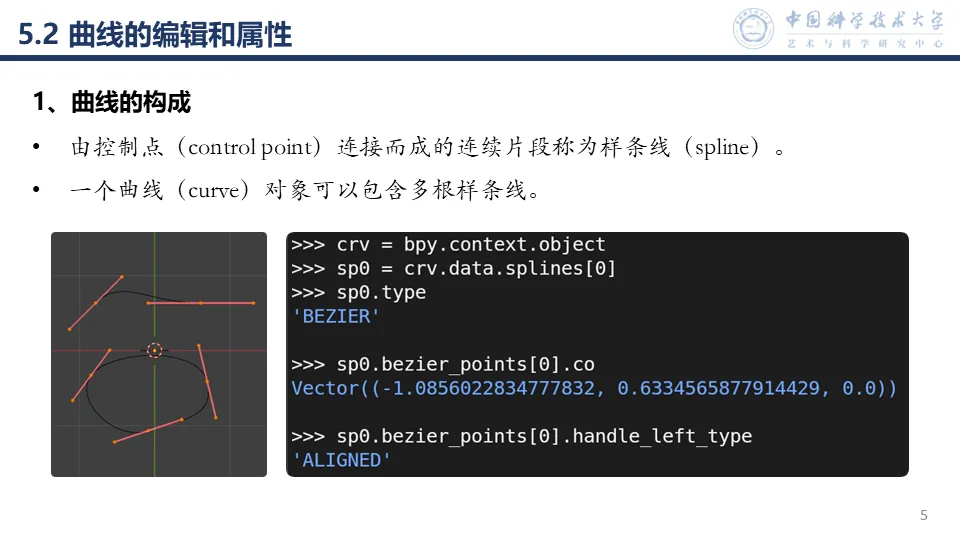

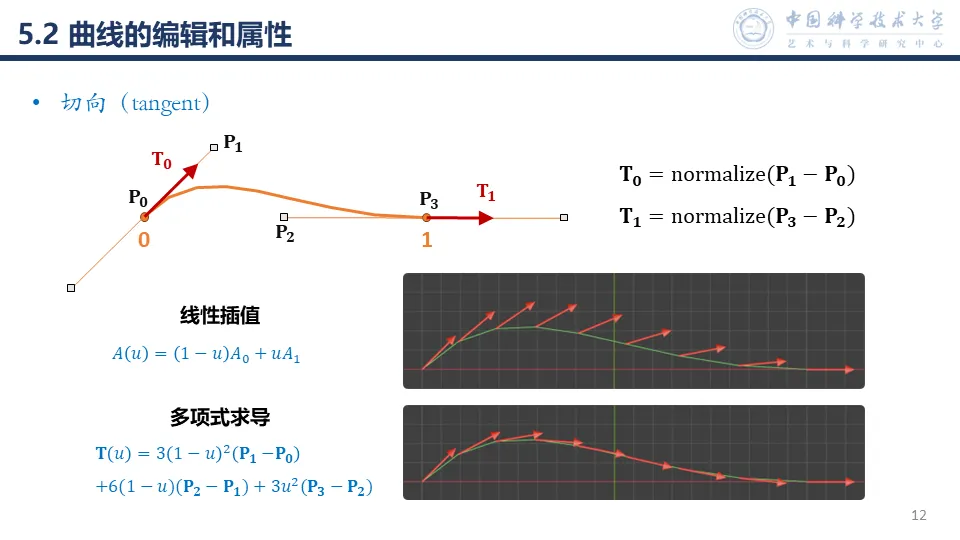

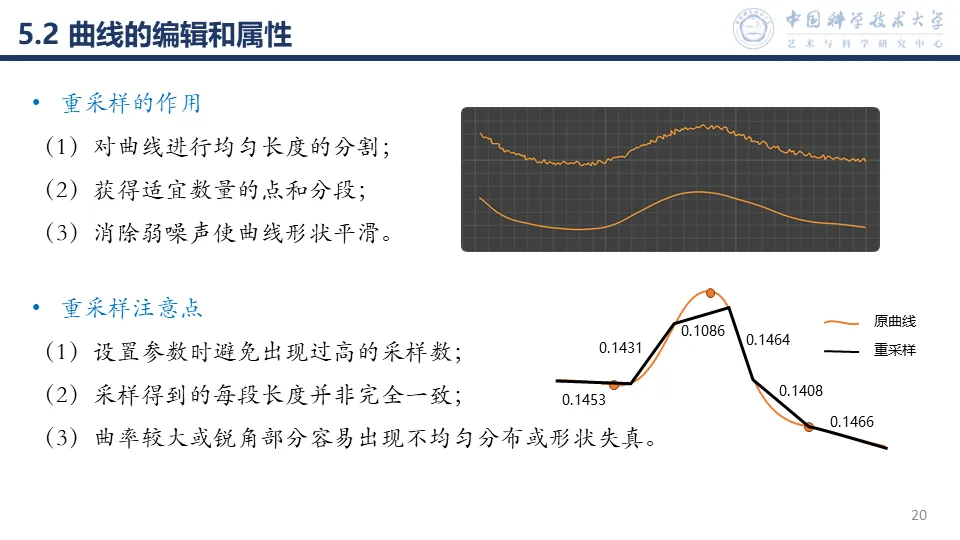

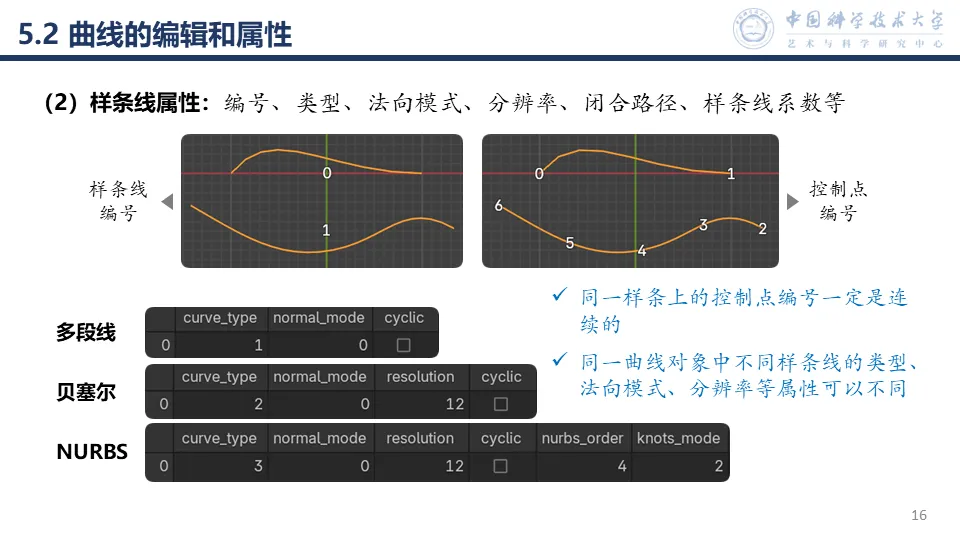

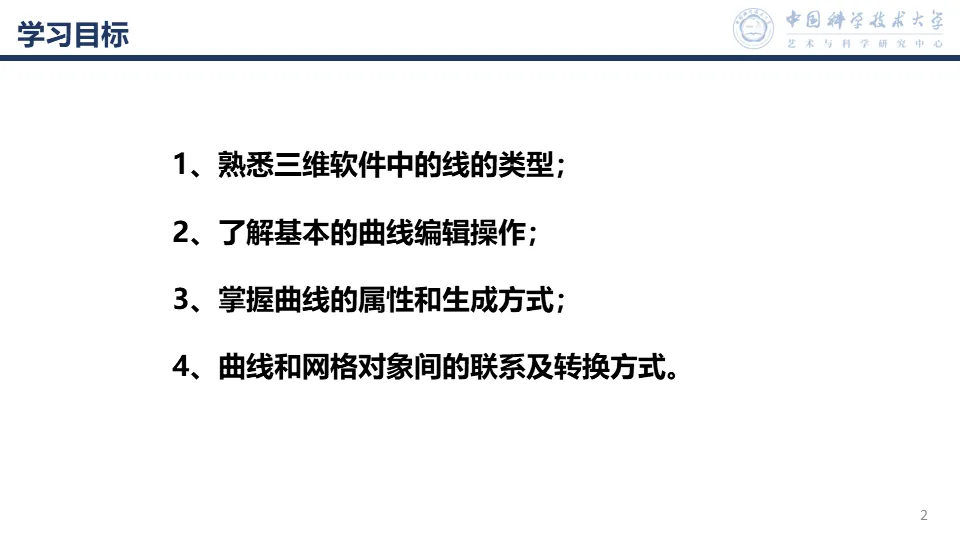

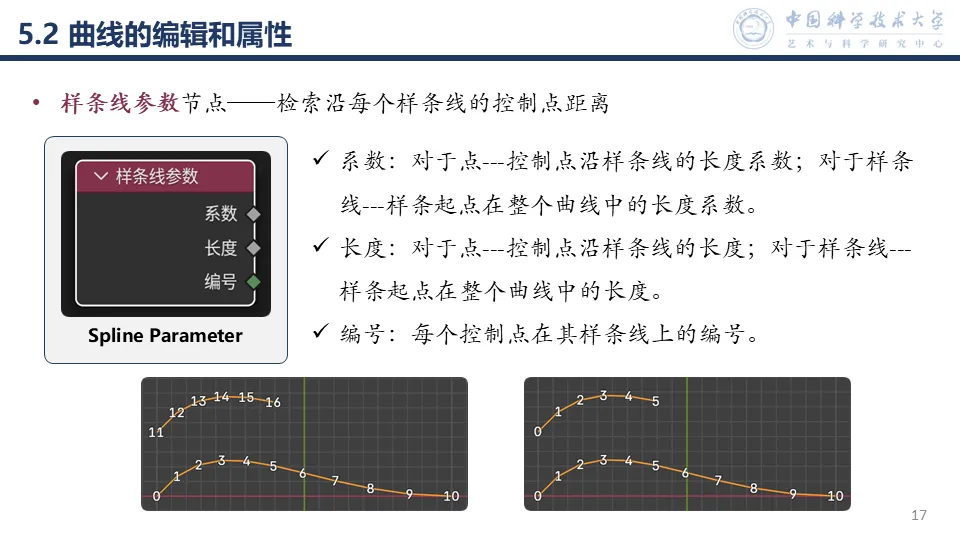

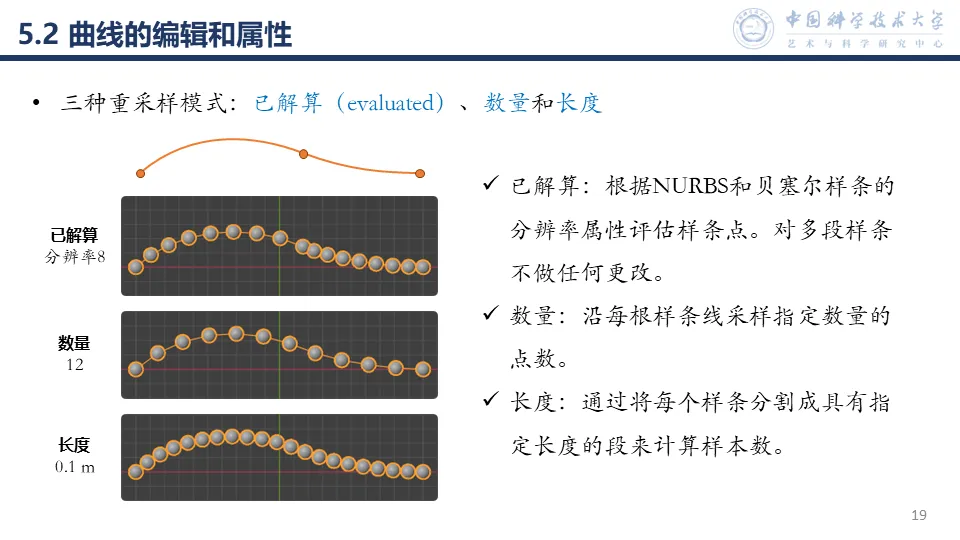

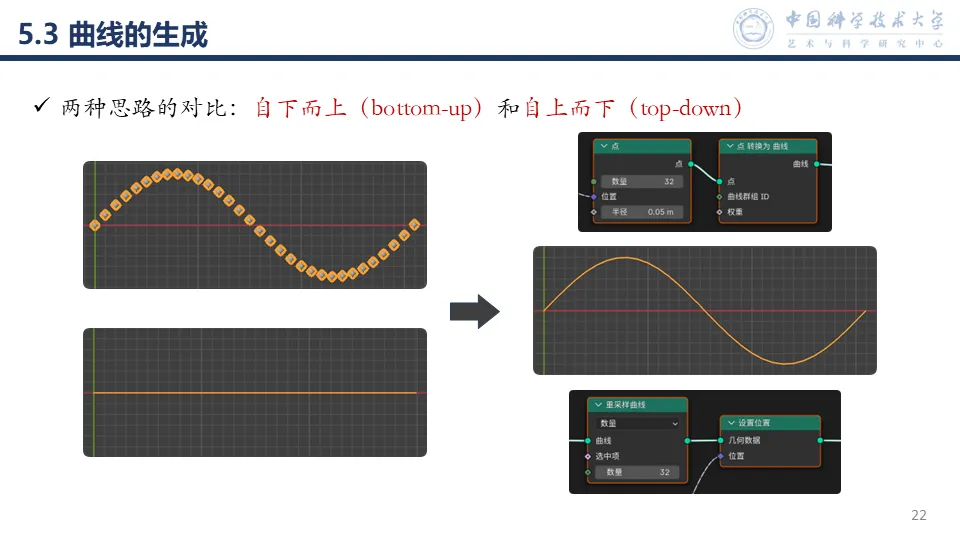

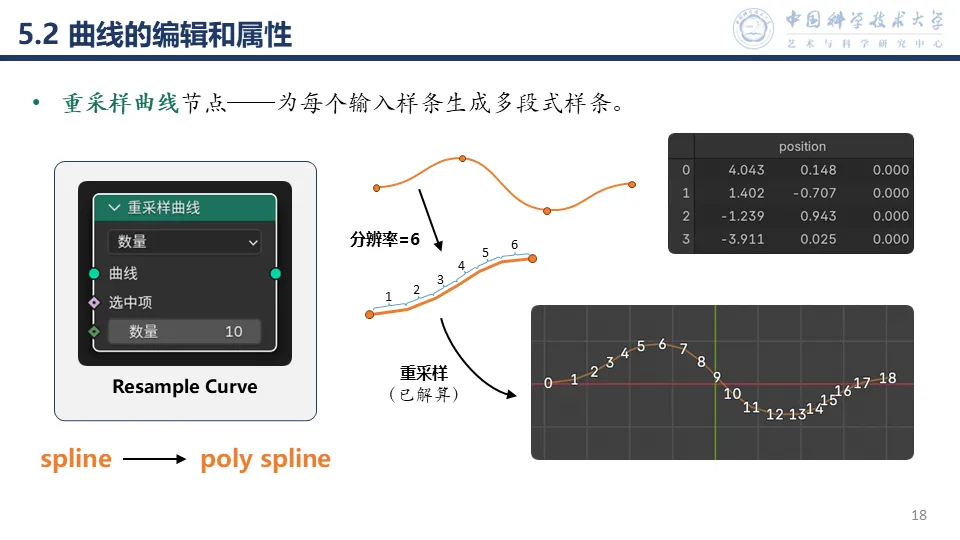

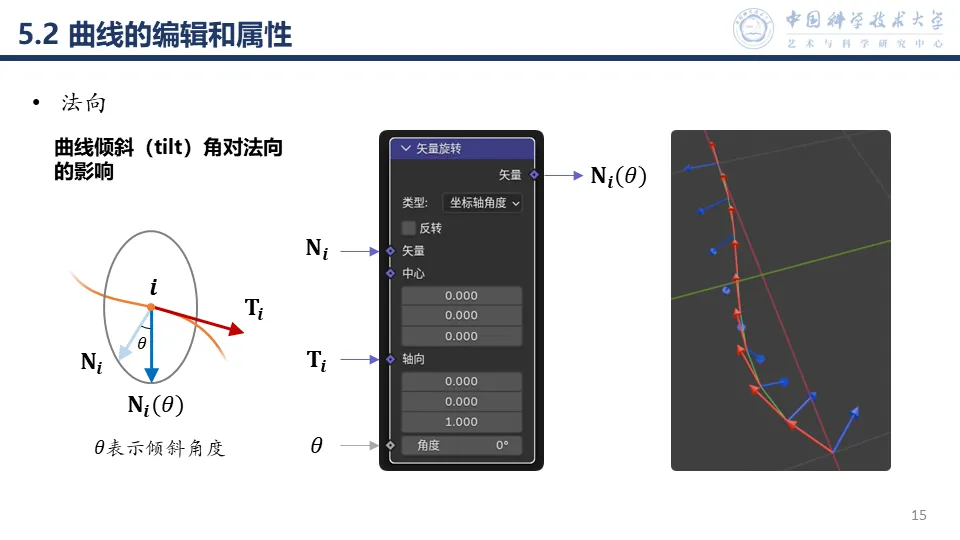

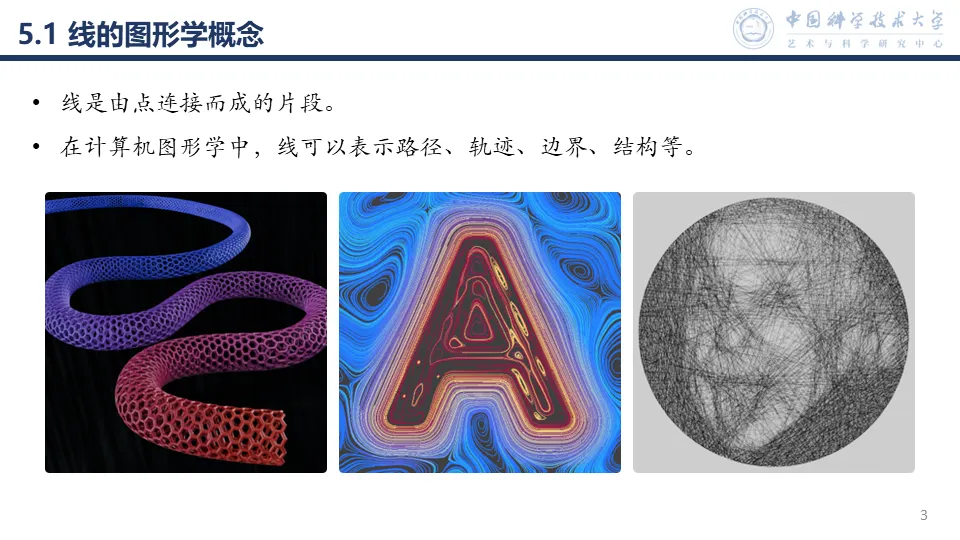

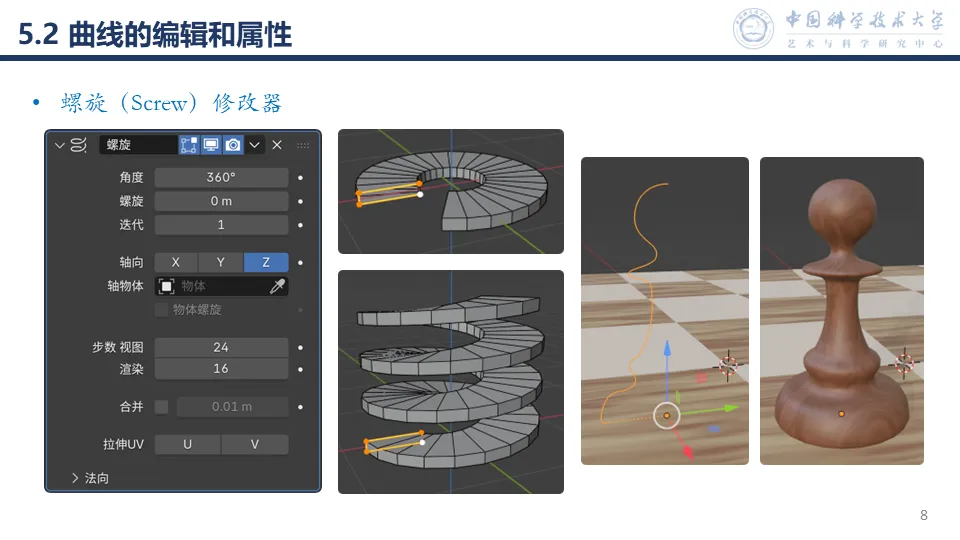

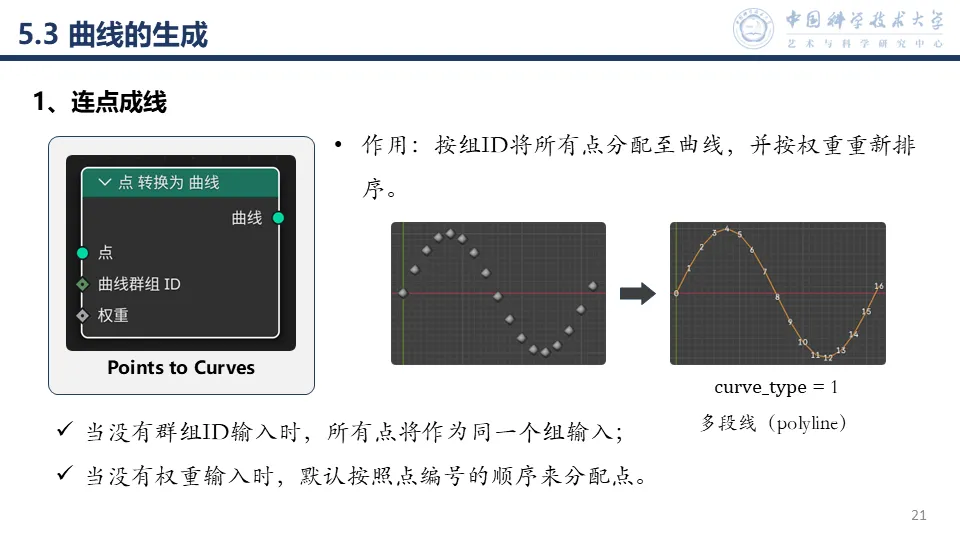

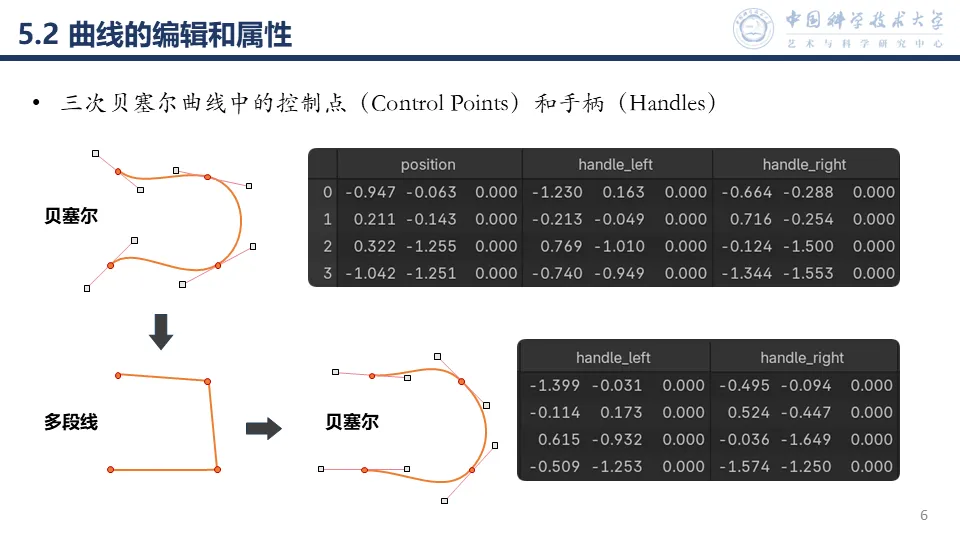

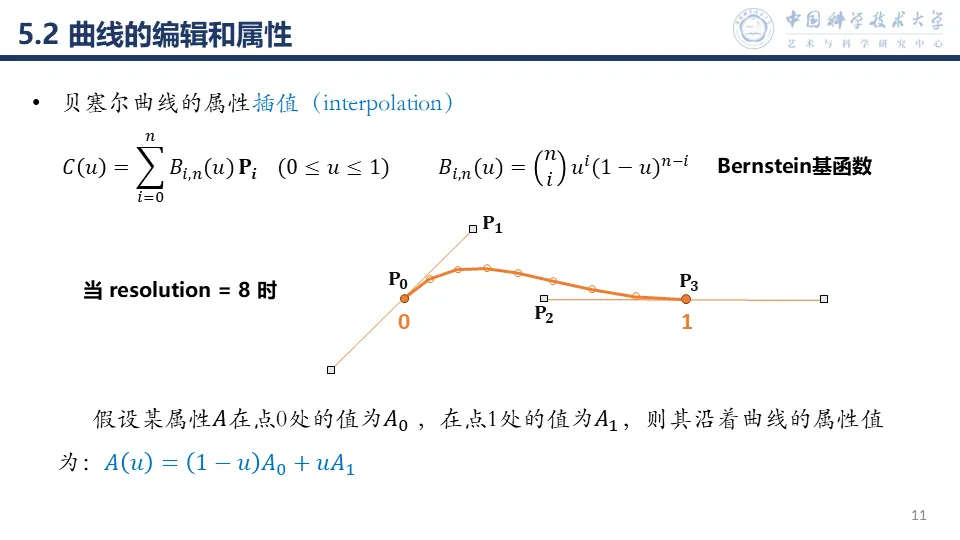

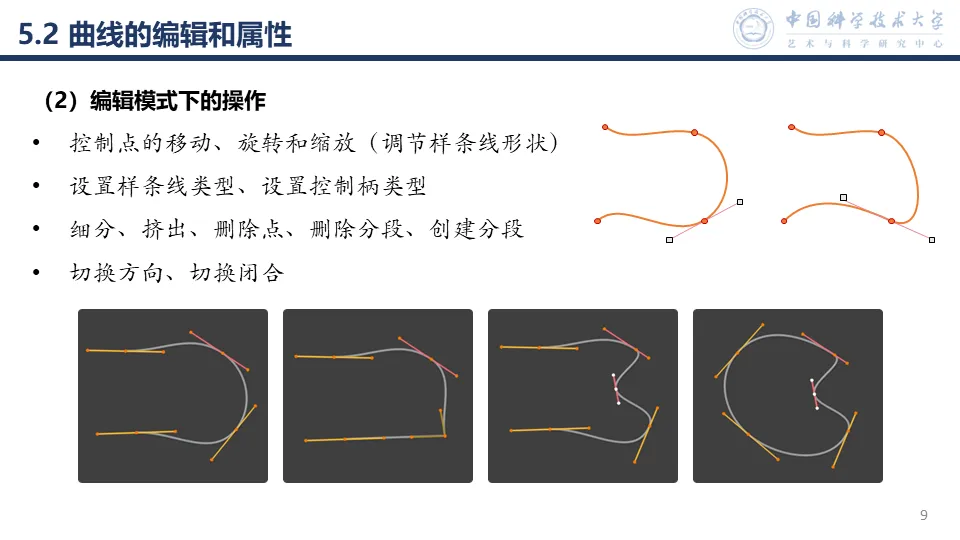

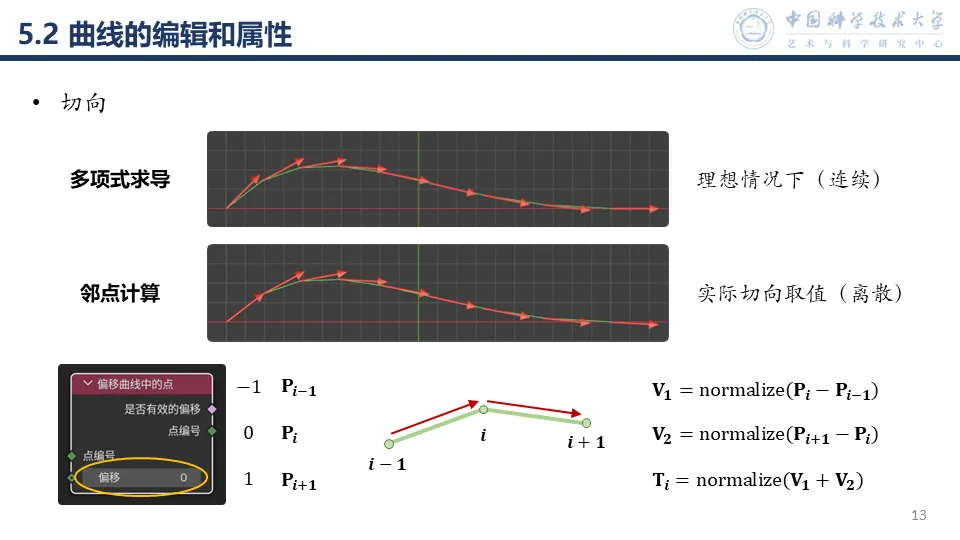

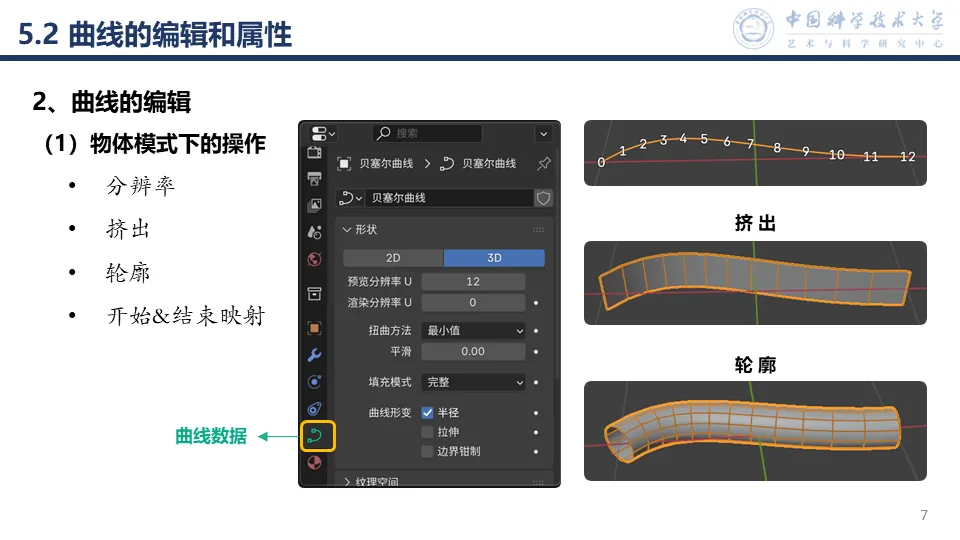

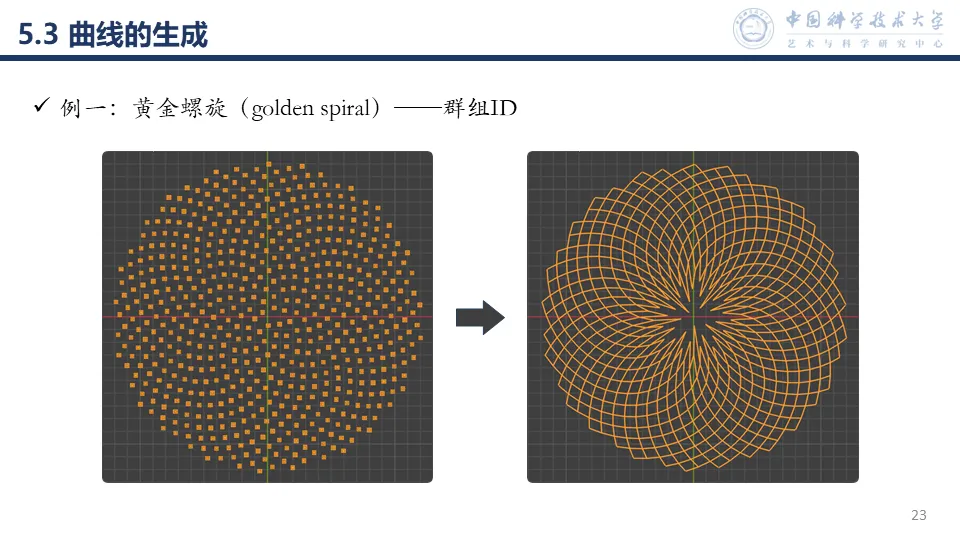

以下是本次课程的PPT课件——

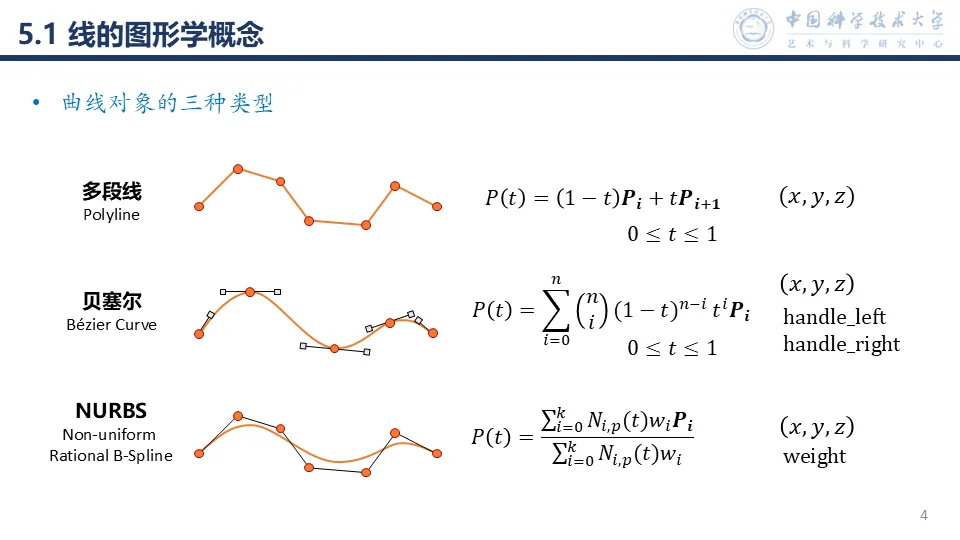

本章内容更加偏向实际操作。关于“曲线的类型”可以在3.4节的“曲线数据”中查看，本章不再重复介绍。下次课会介绍曲线和网格之间的转换，还有一些附加知识，《线的可视化》内容就讲完了。
本文来自网友投稿或网络内容，如有侵犯您的权益请联系我们删除，联系邮箱：wyl860211@qq.com 。
