十年前高校LLC设计与仿真课件

  • 2026-05-13 18:52:16
十年前高校LLC设计与仿真课件

现在比较火热的AI和汽车电子，都在使用LLC，很多人以为这个东西是个很新的东西，实际上电力电子没有新鲜事，拓扑和算法基本都是上世纪就有的，只不过当时由于没法商业化，或者没有发现市场需求，一直没有深入发展而已。

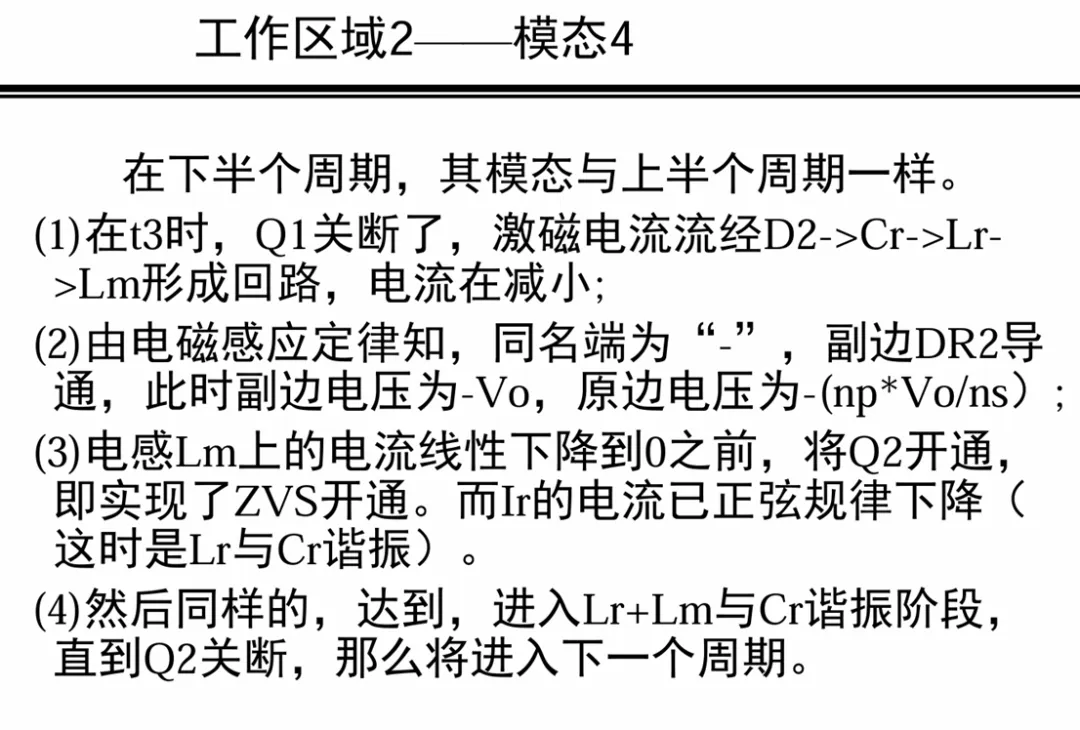

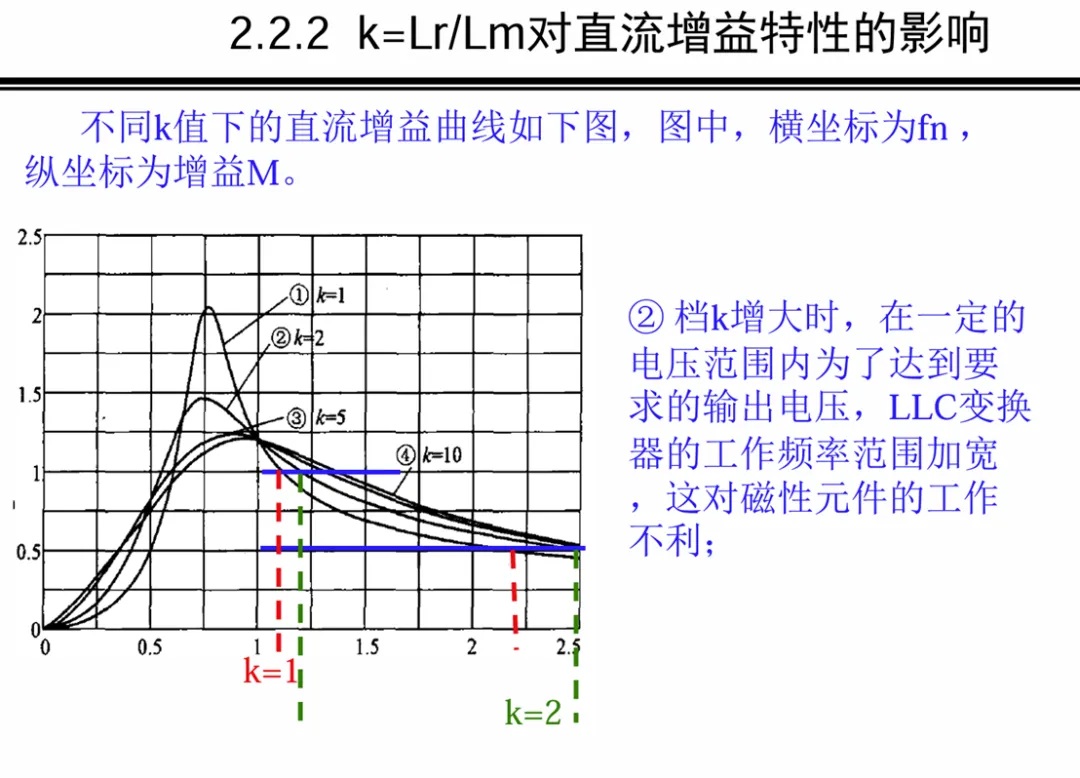

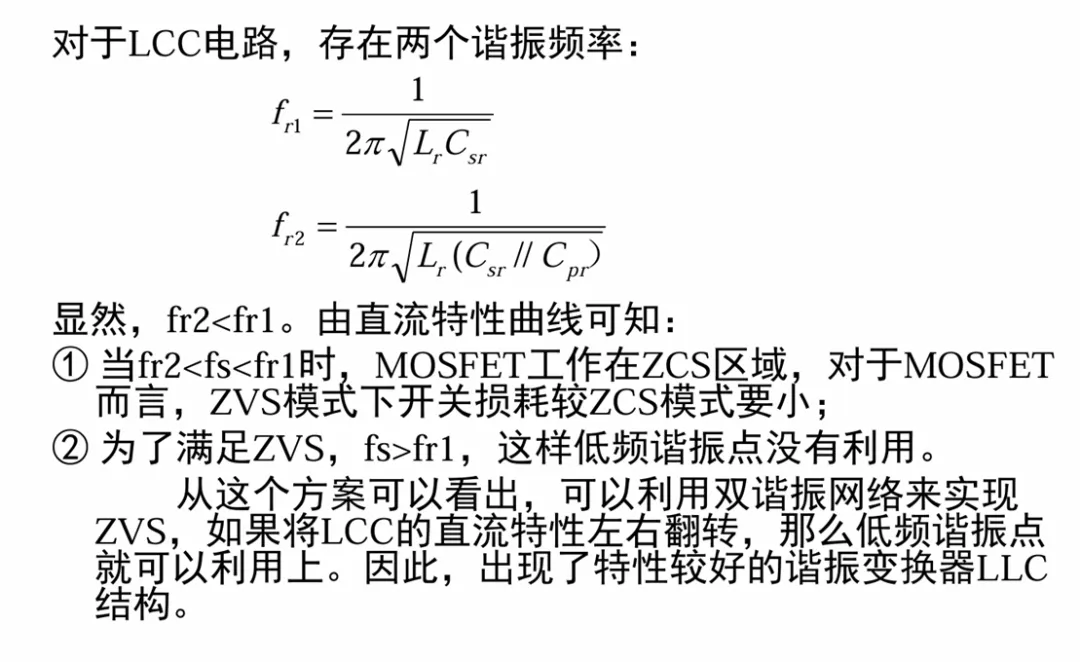

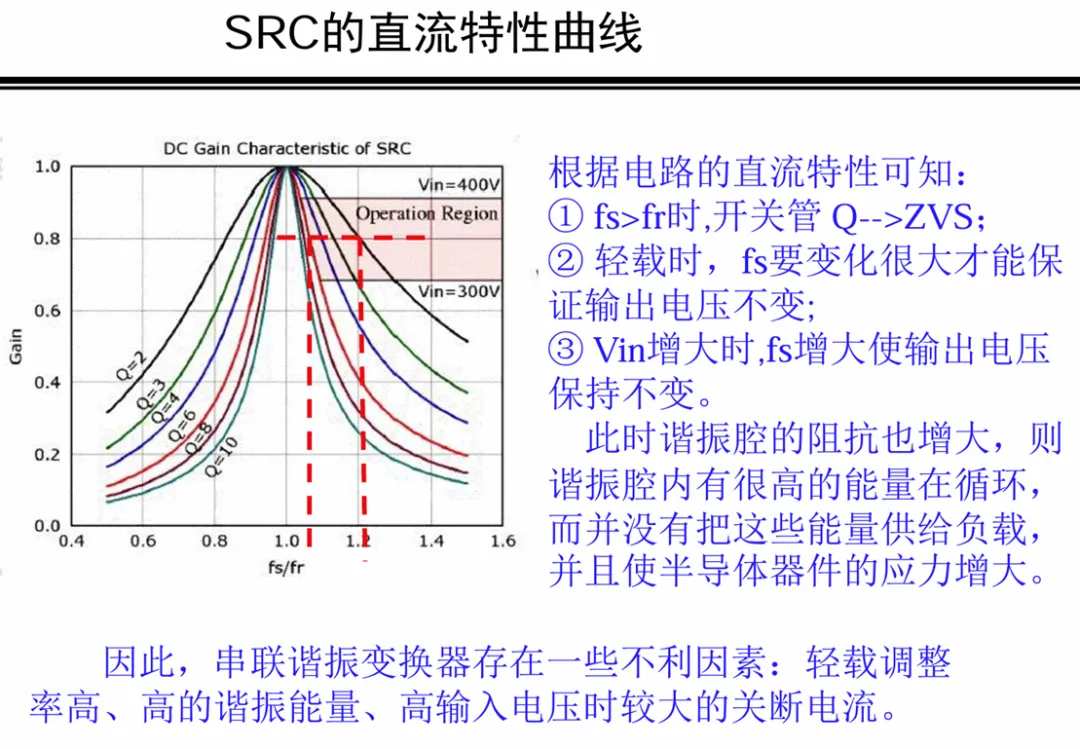

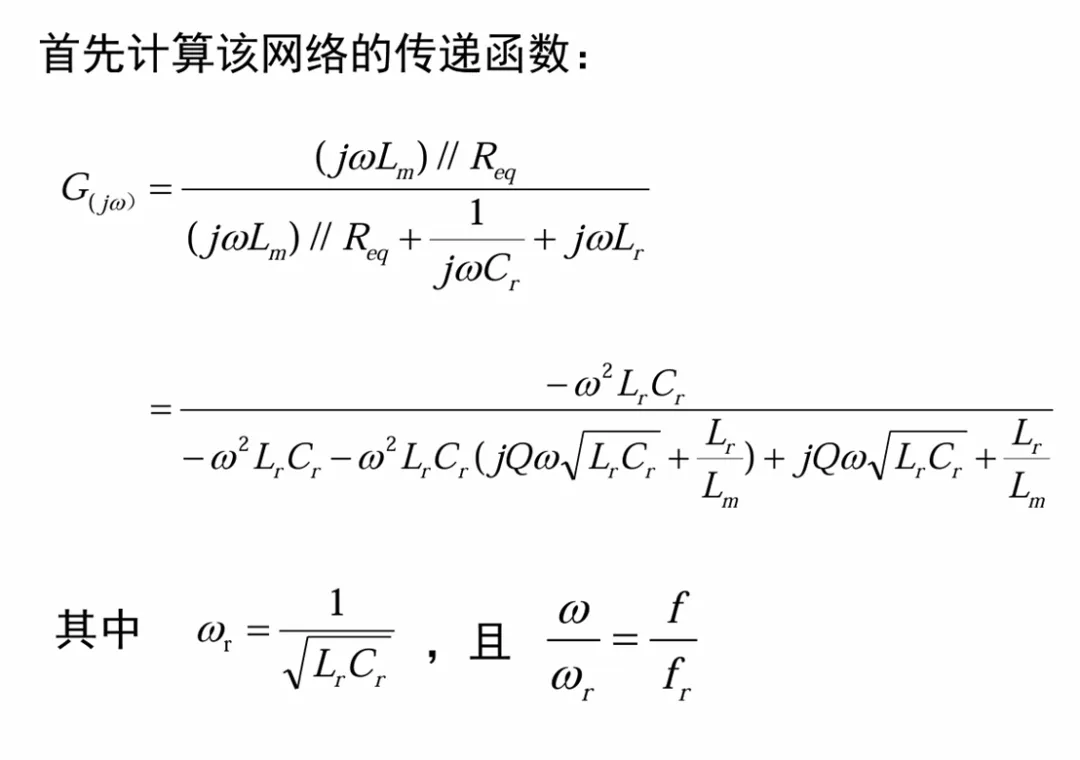

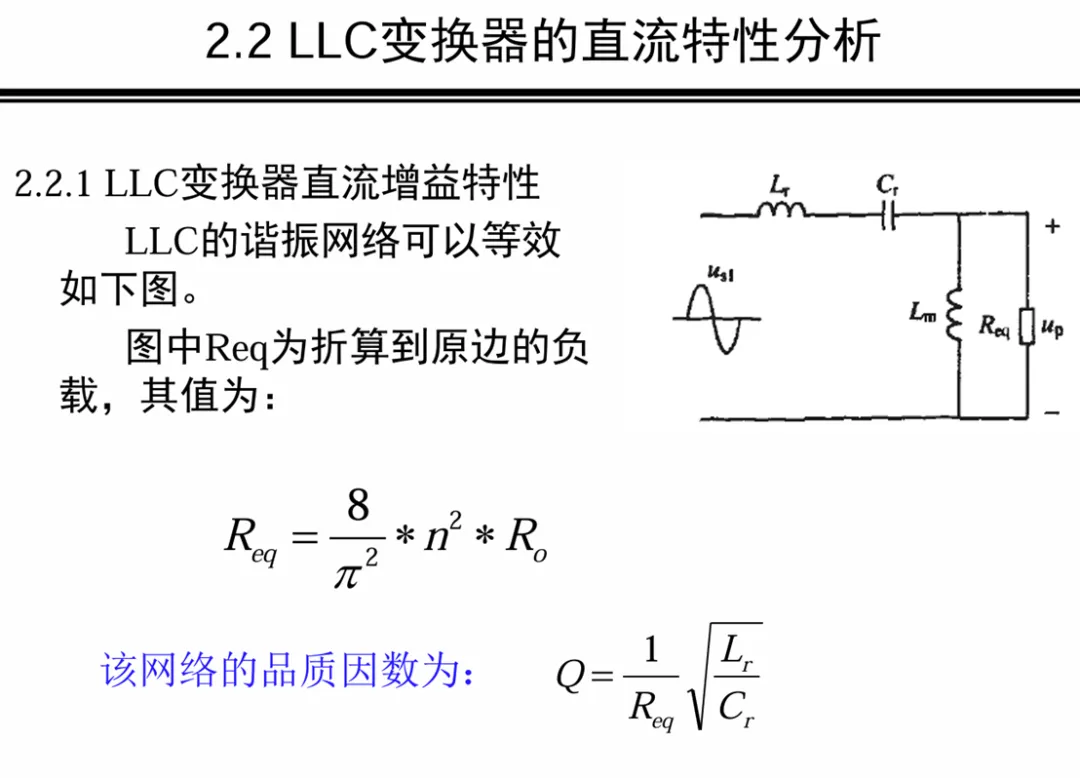

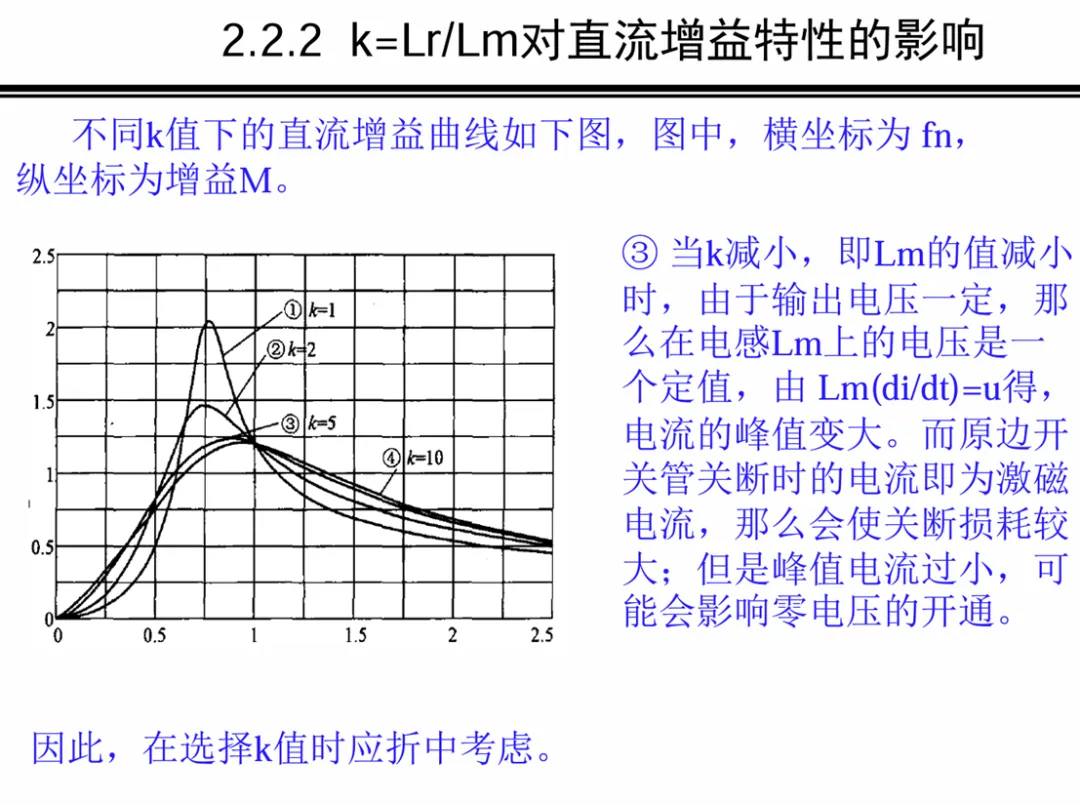

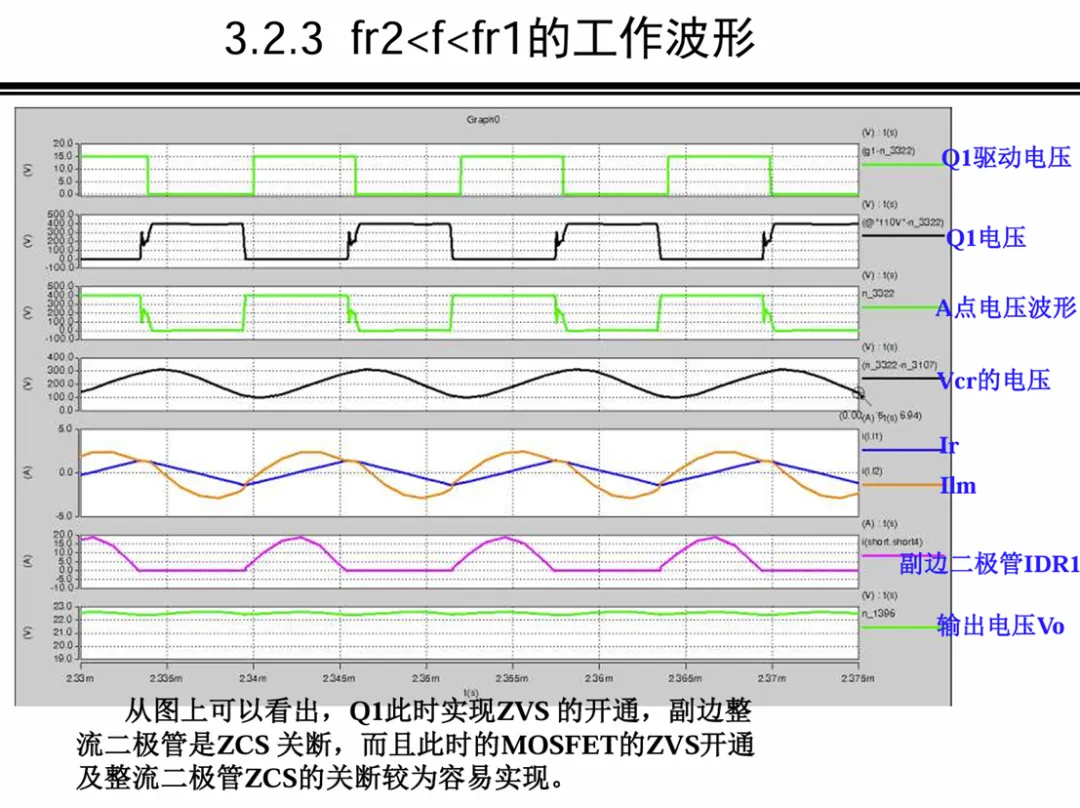

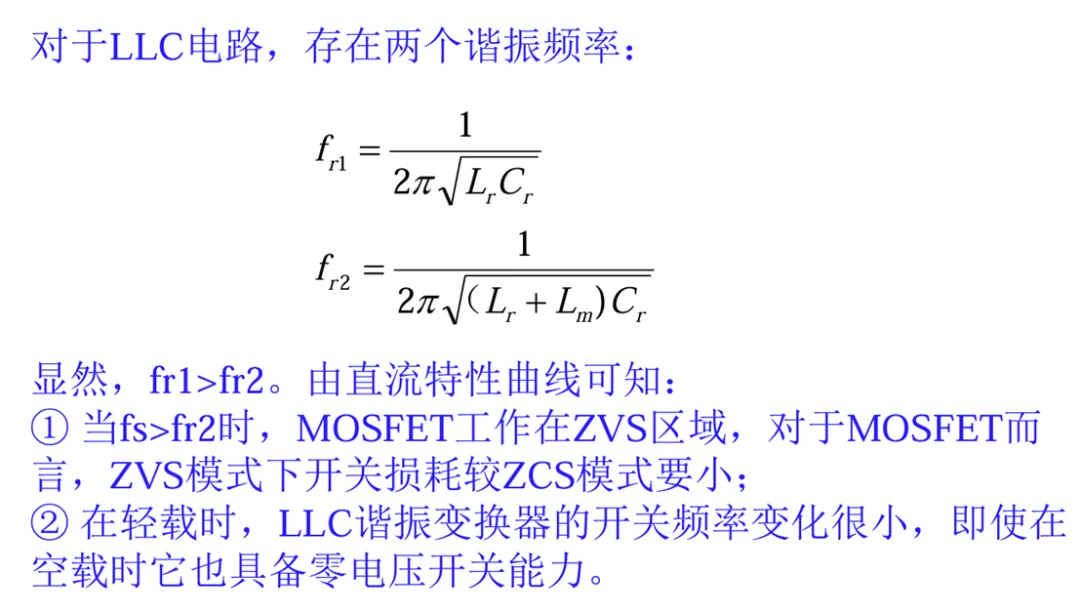

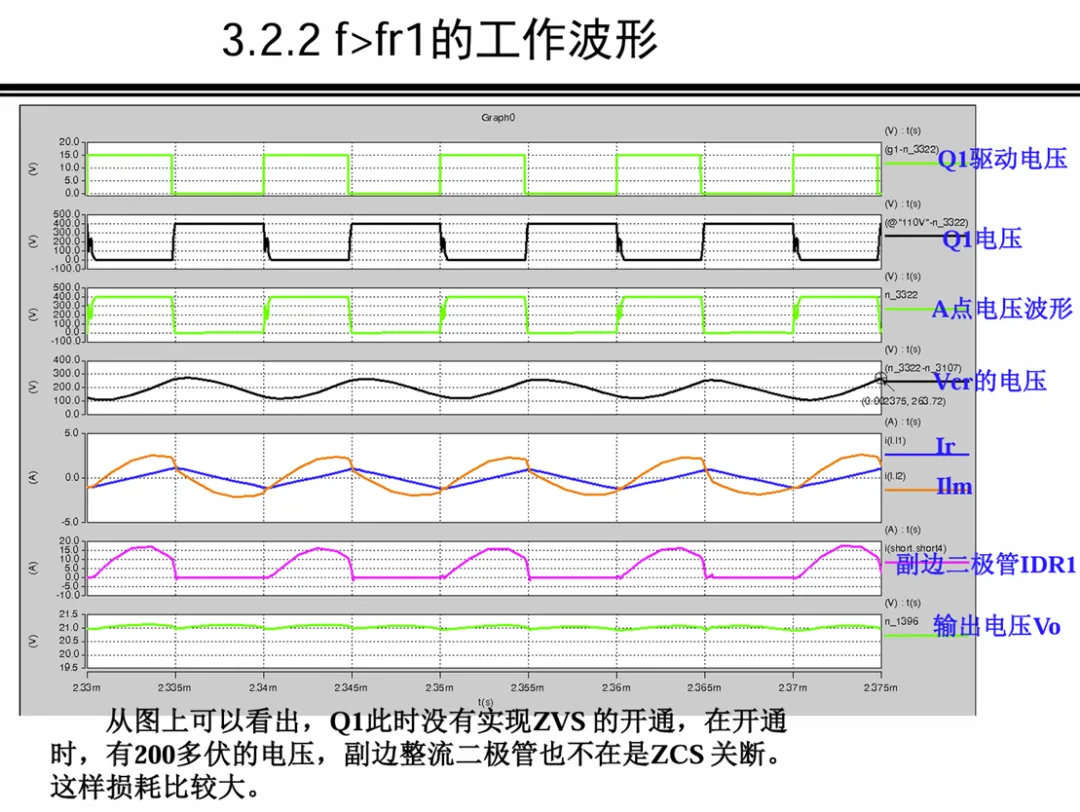

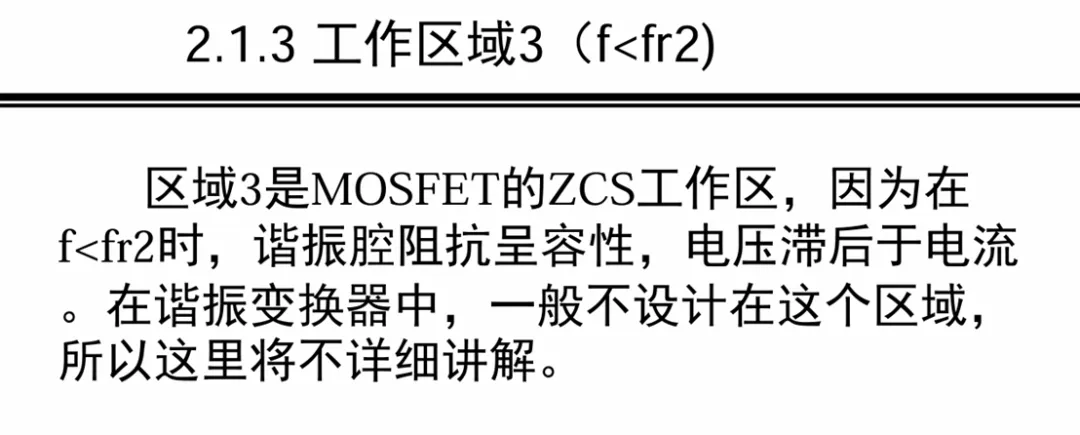

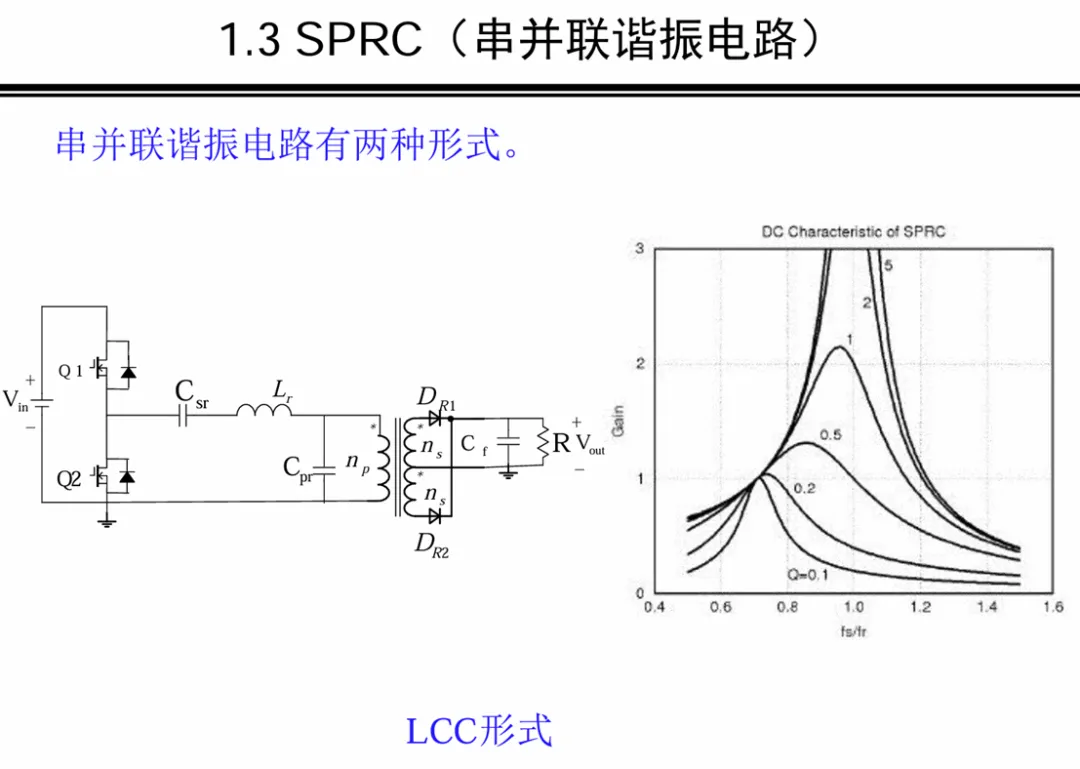

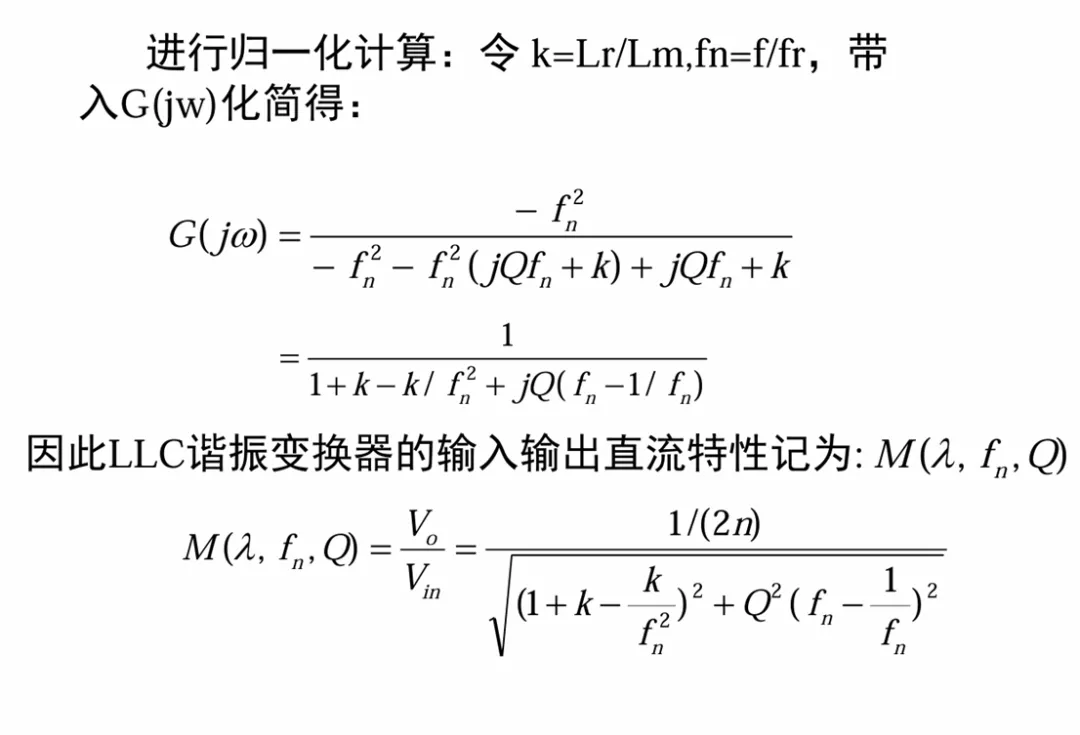

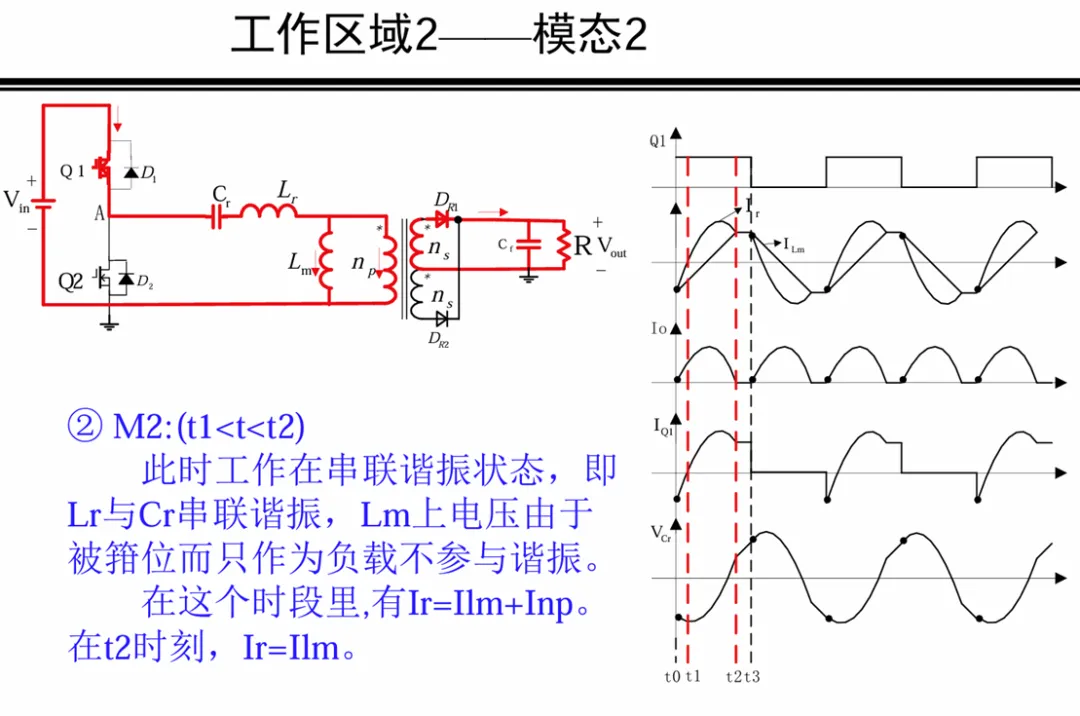

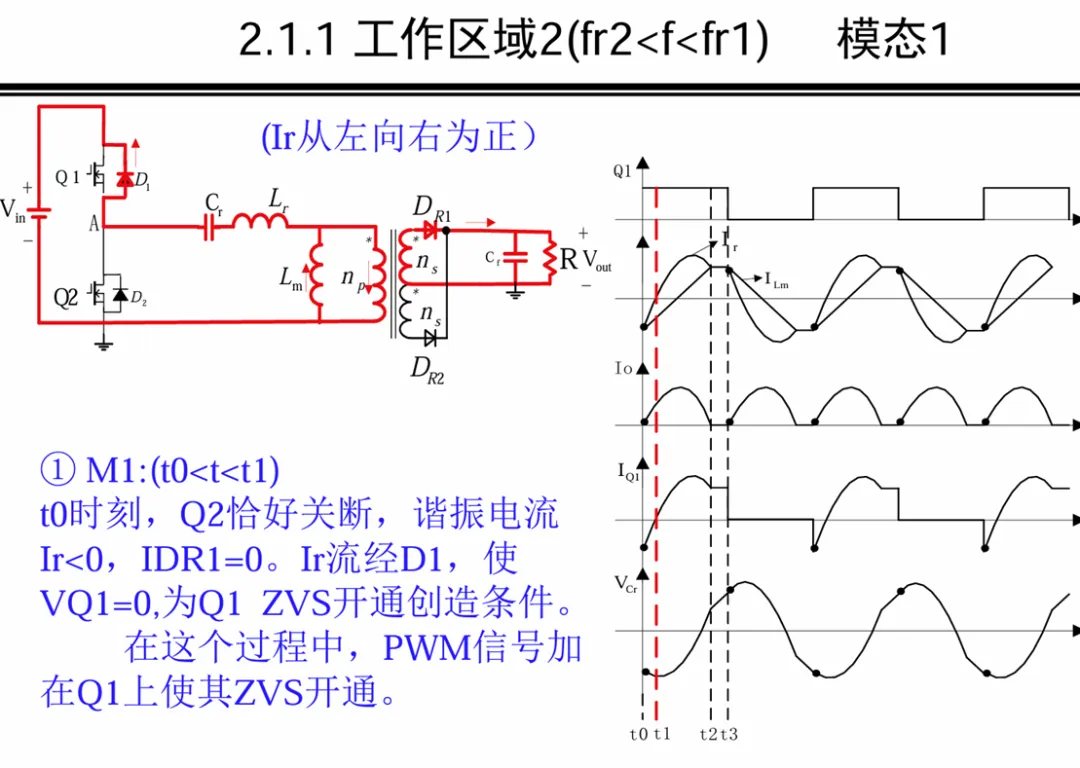

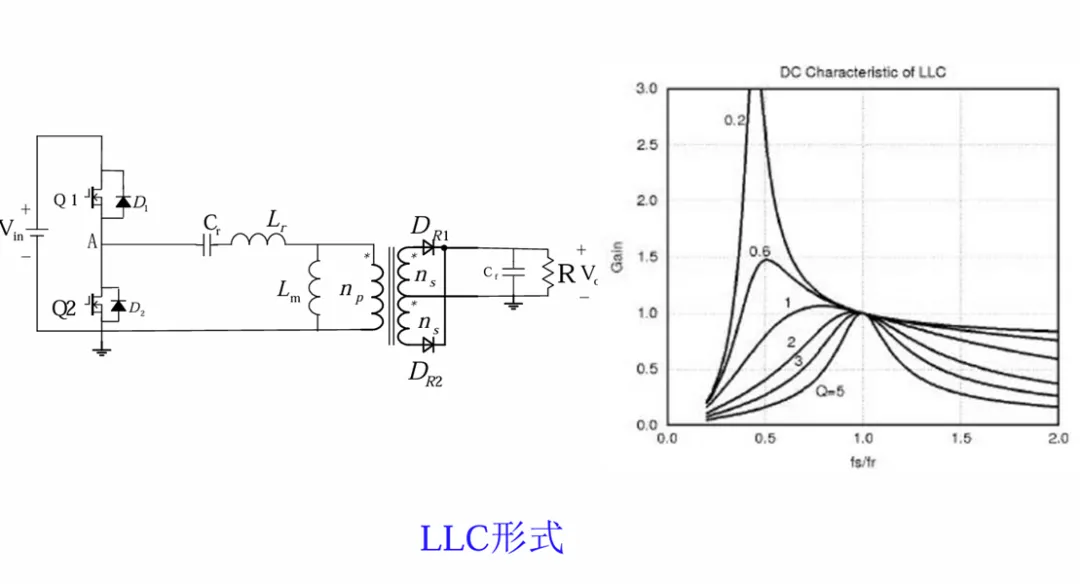

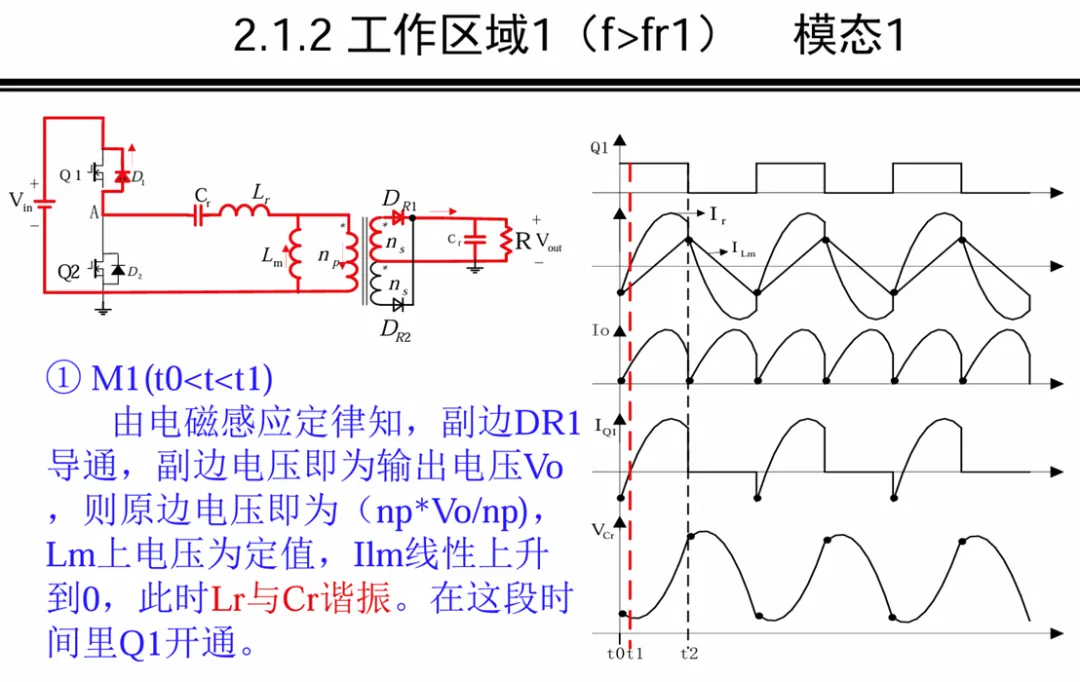

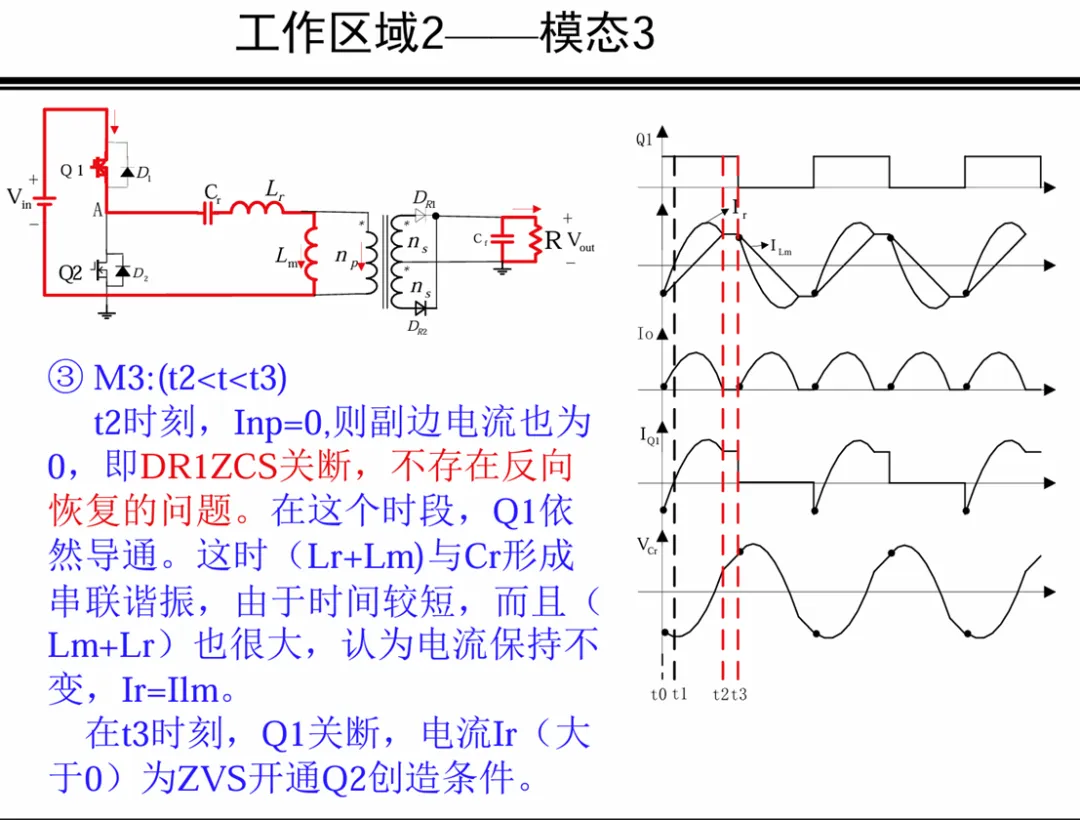

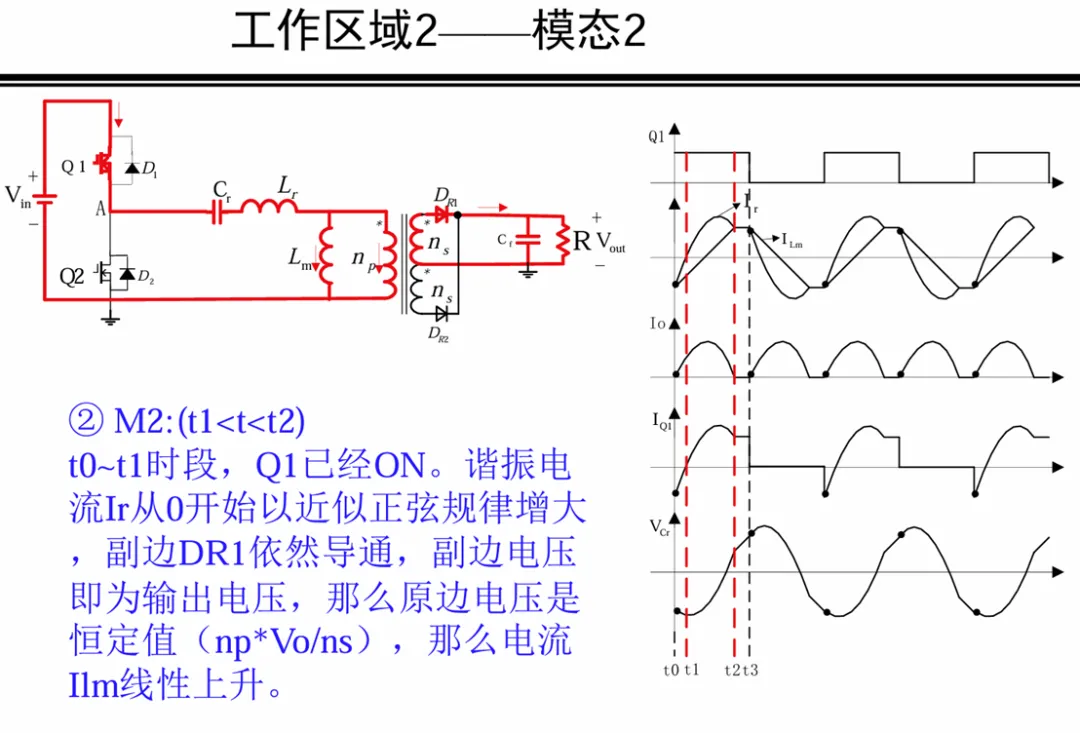

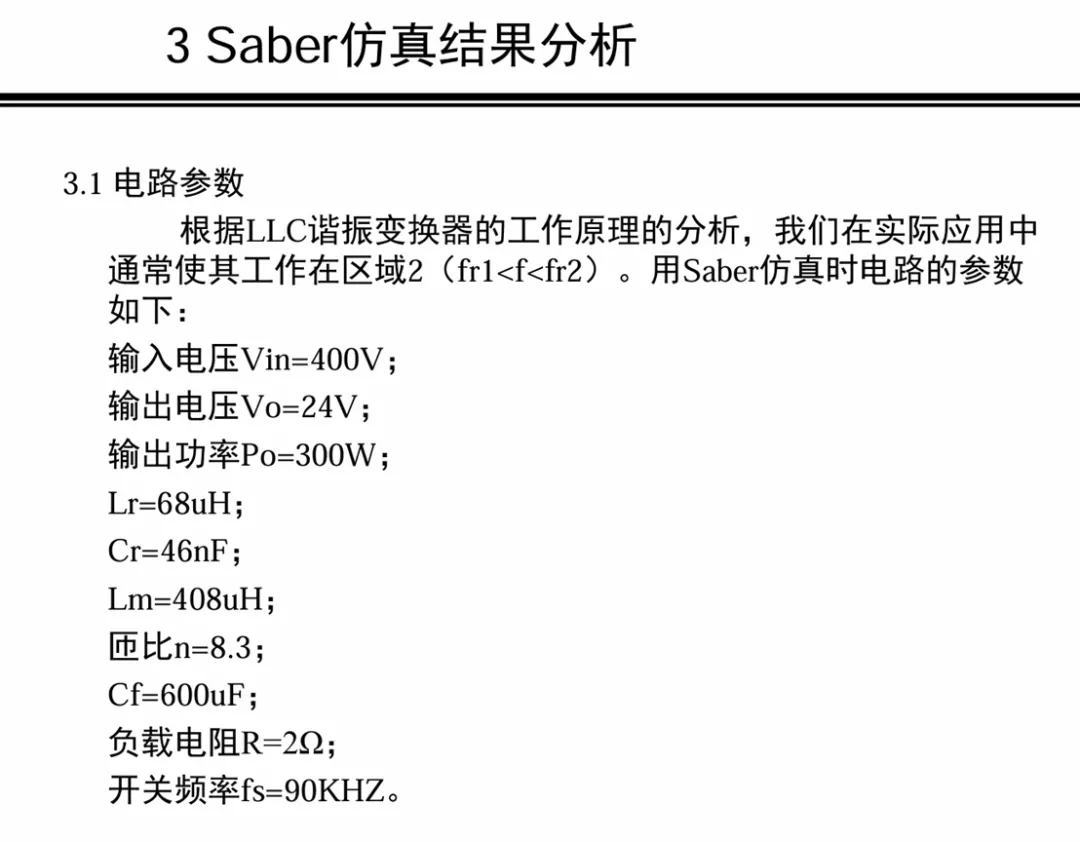

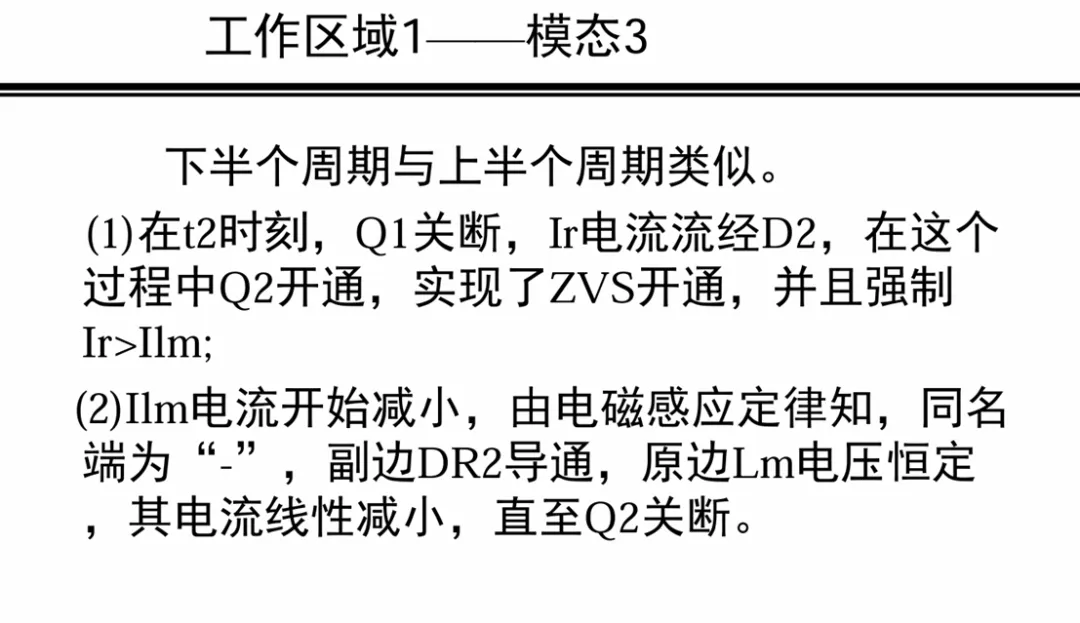

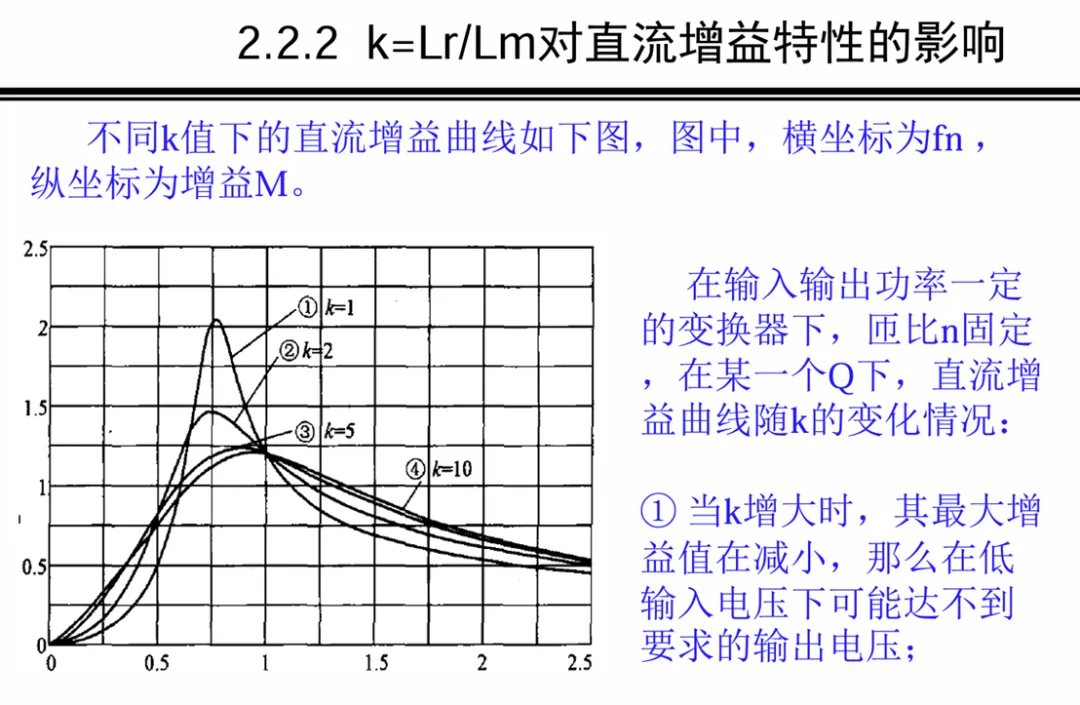

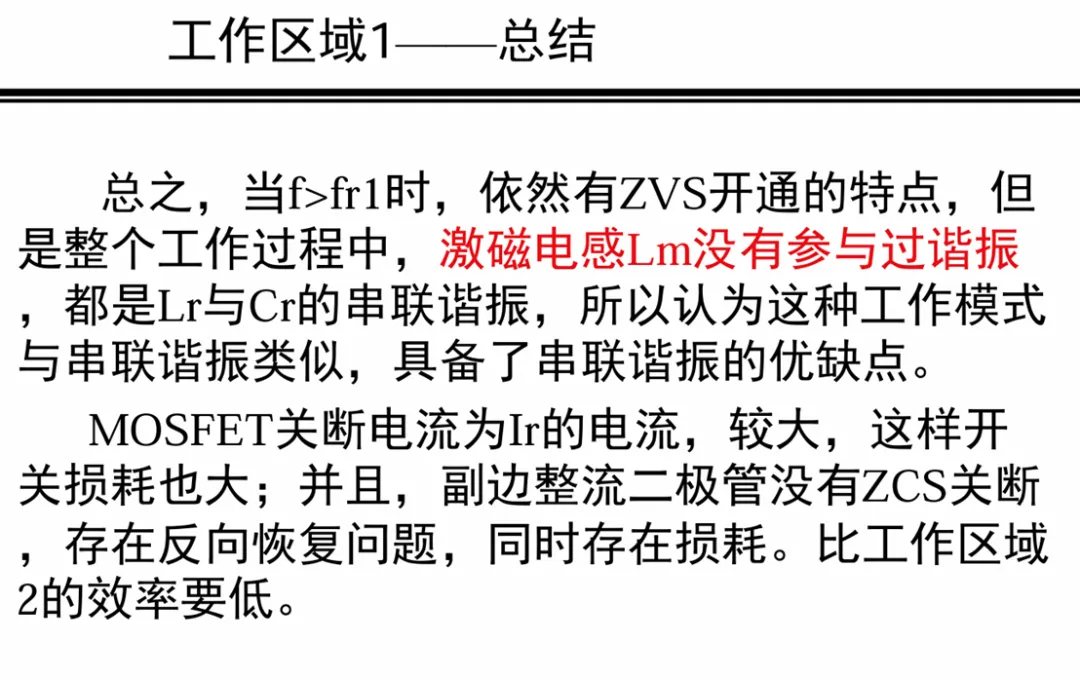

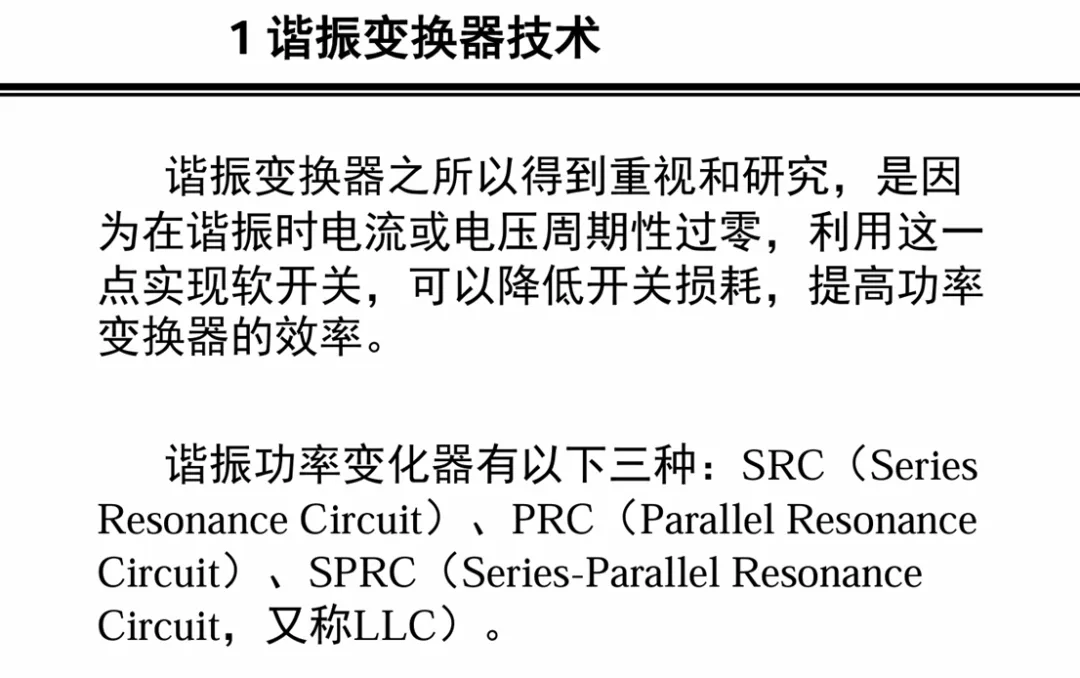

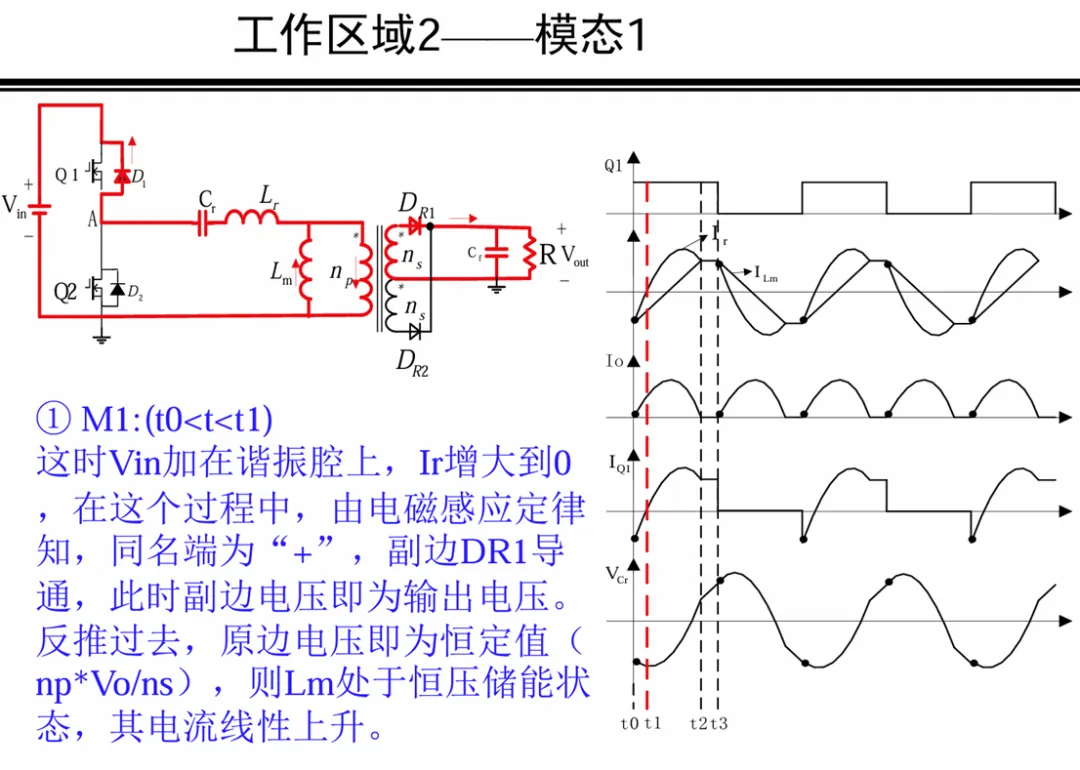

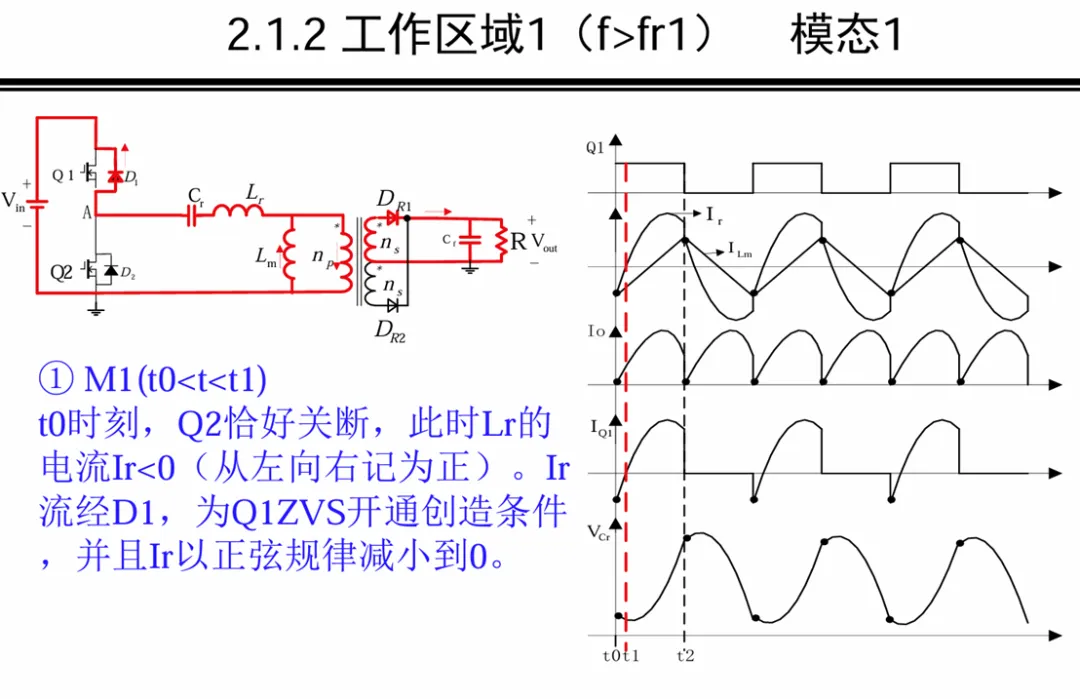

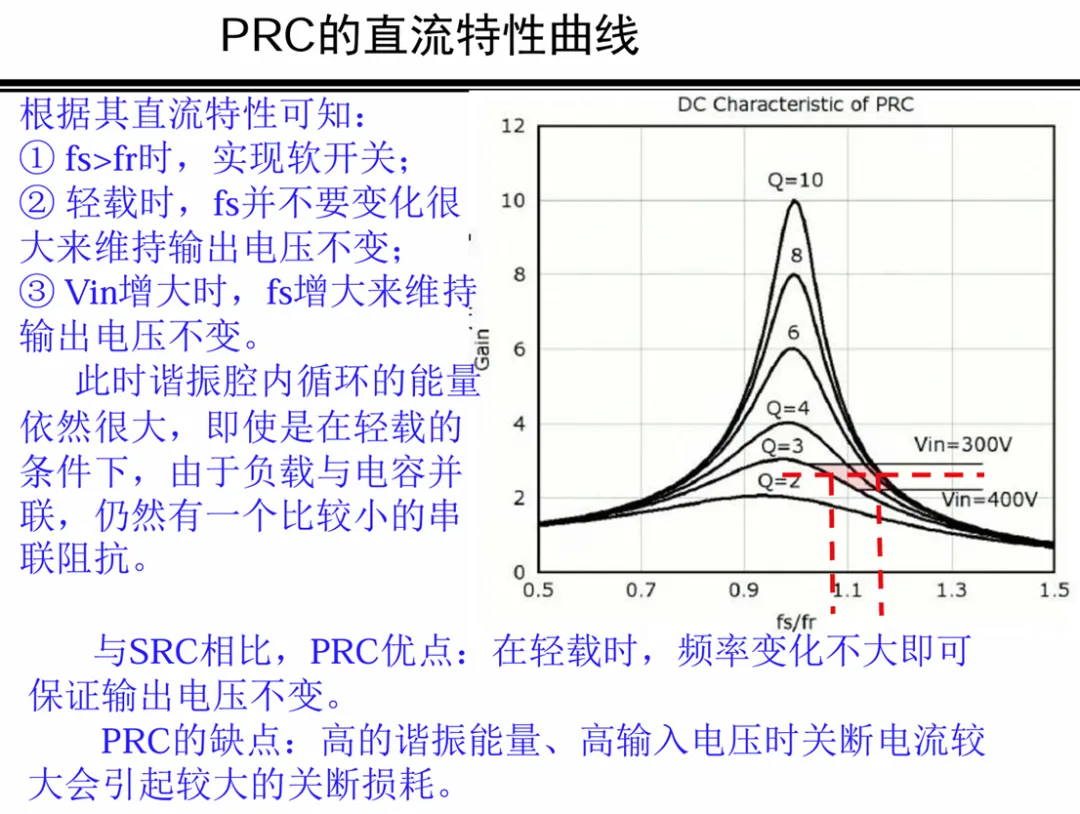

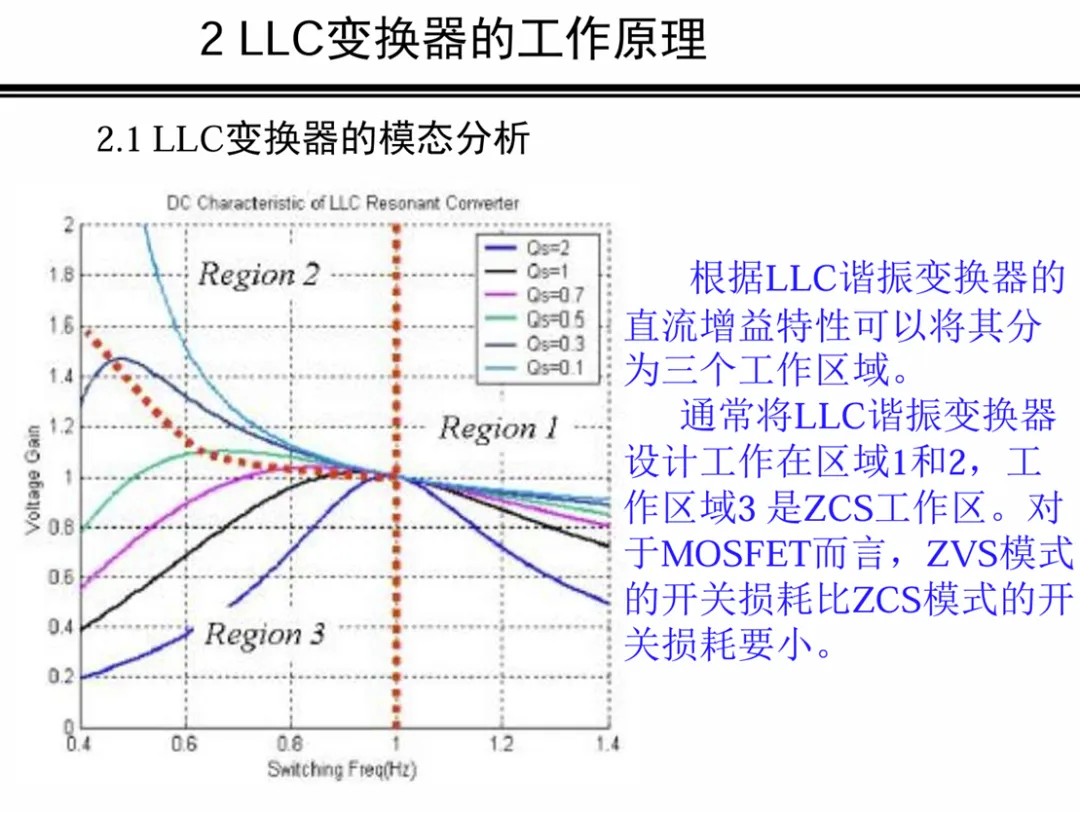

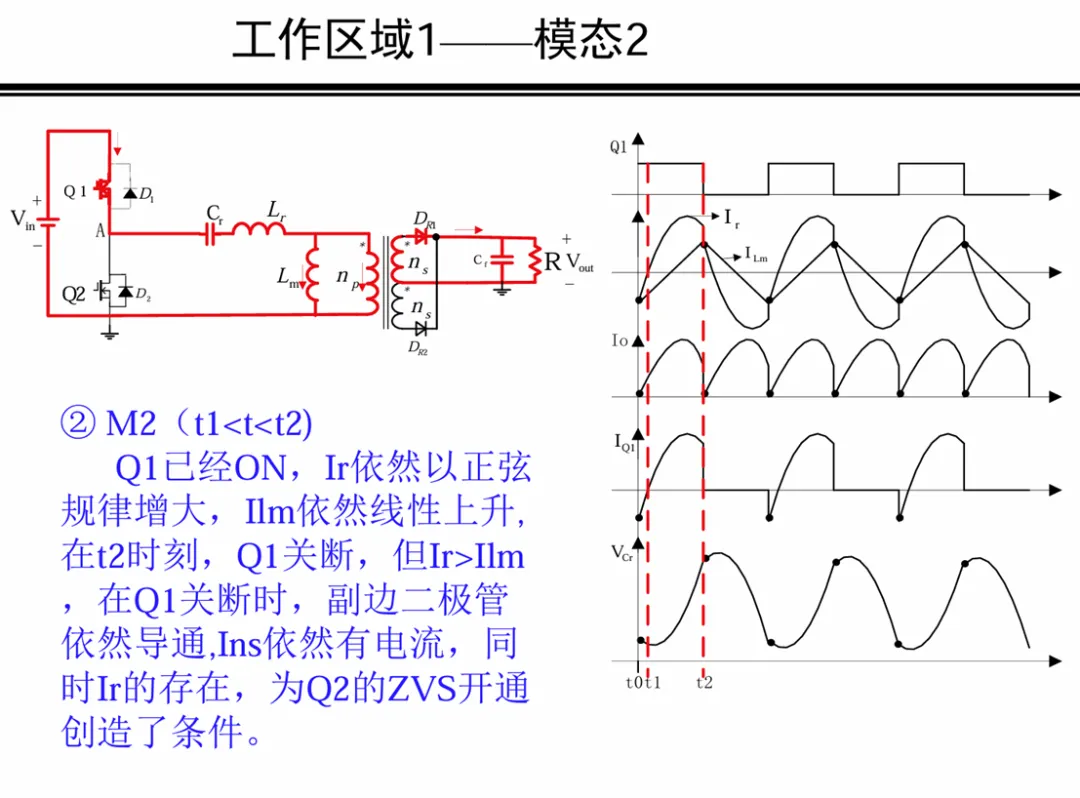

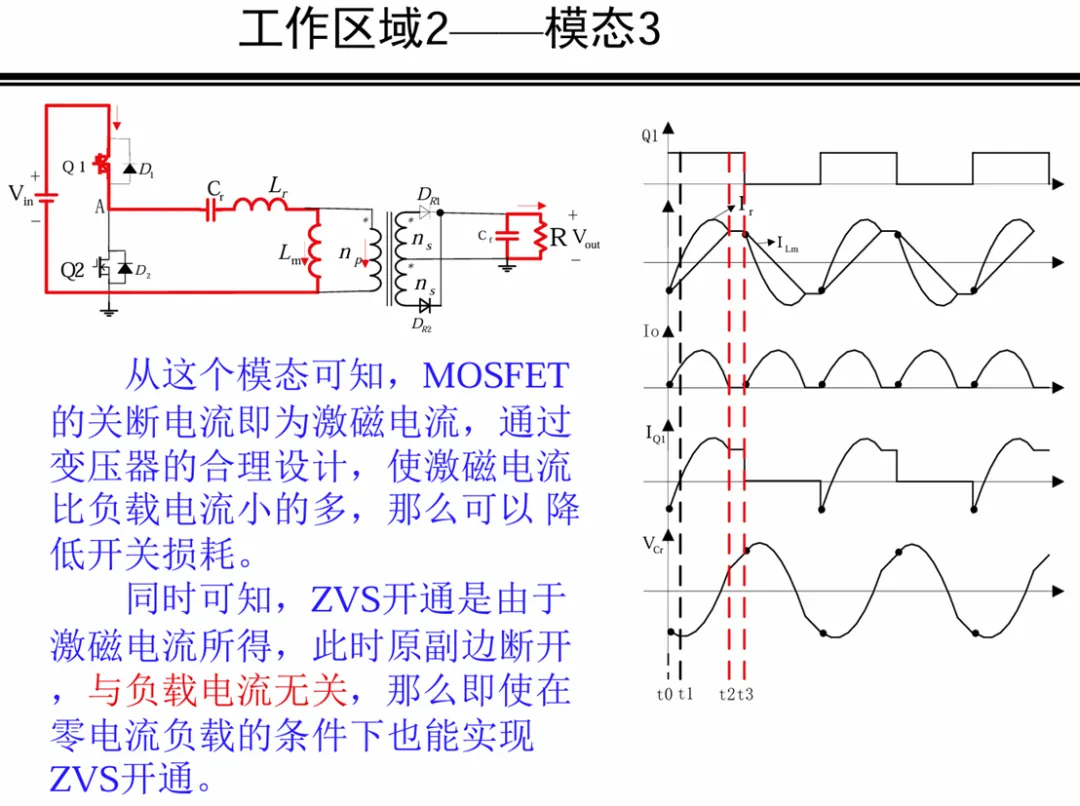

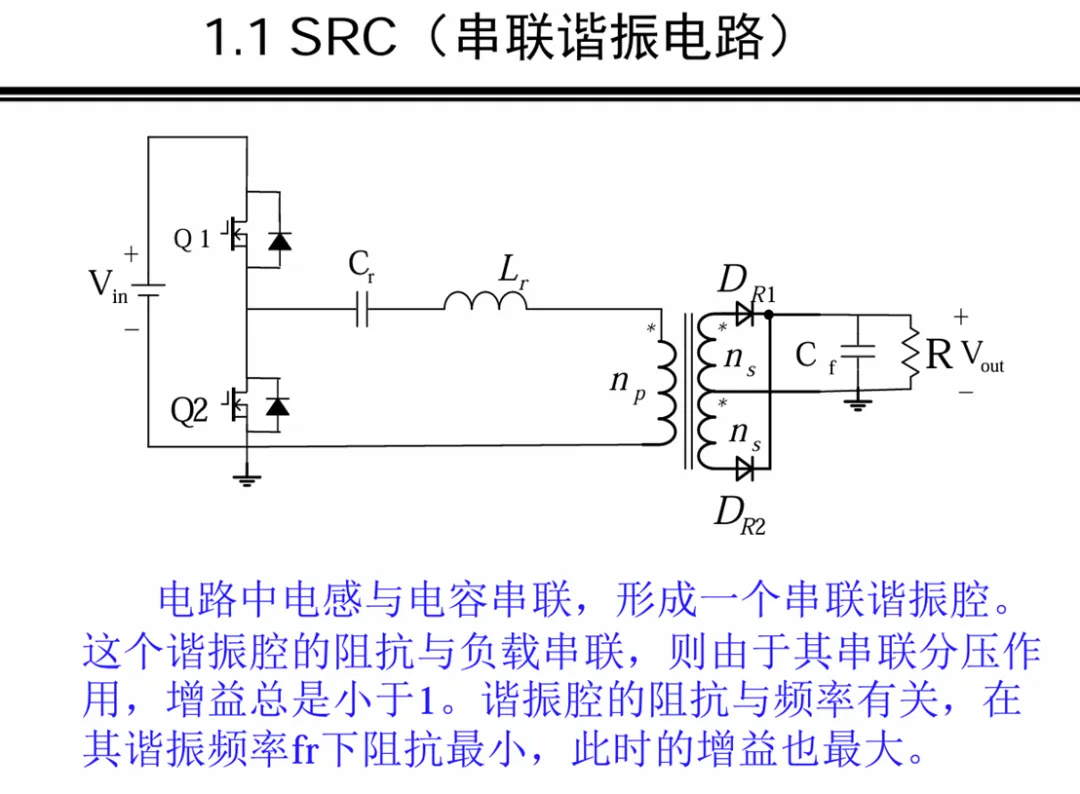

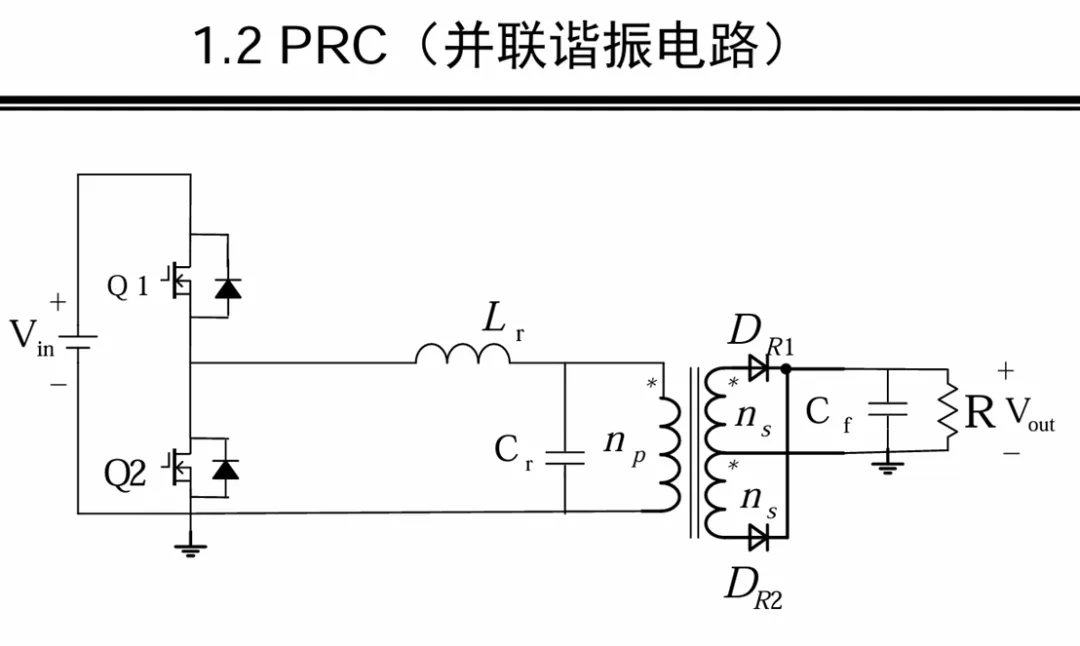

今天我们一起看看十年前，高校LLC设计与仿真课件都在讲些什么东西，无论是工作模态的分析还是设计理念，再或者是仿真，都值得我们去学习！！！

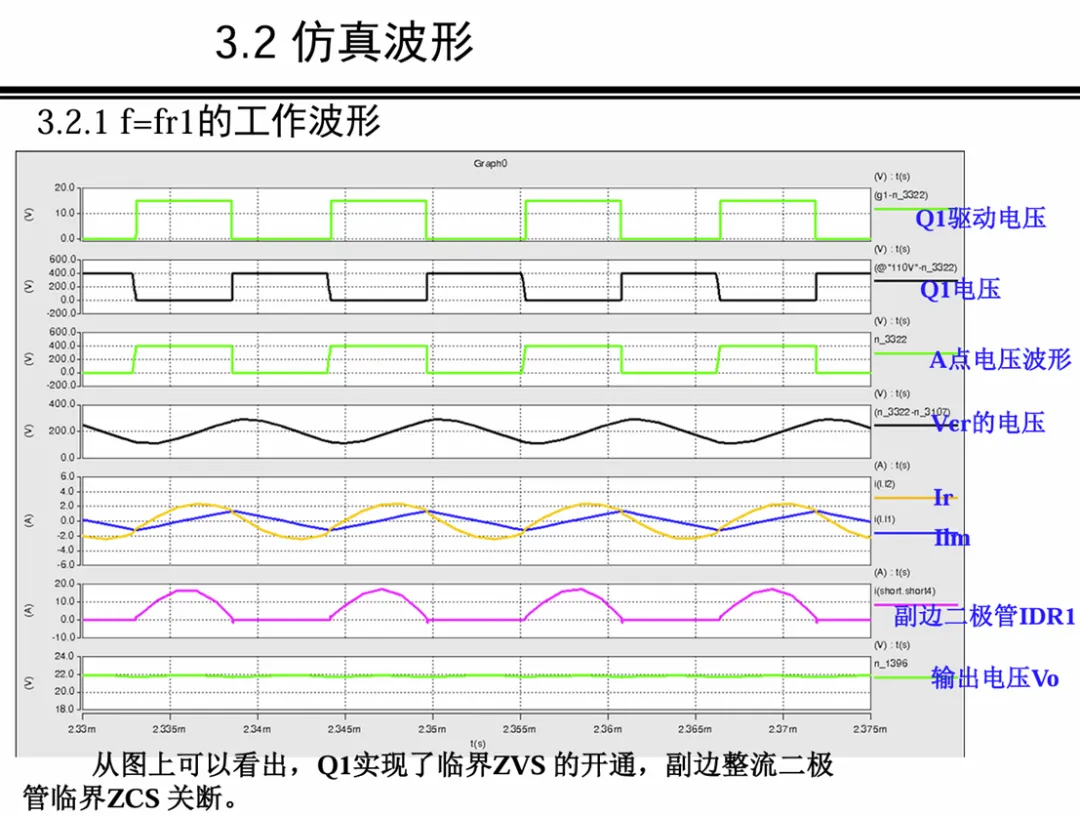

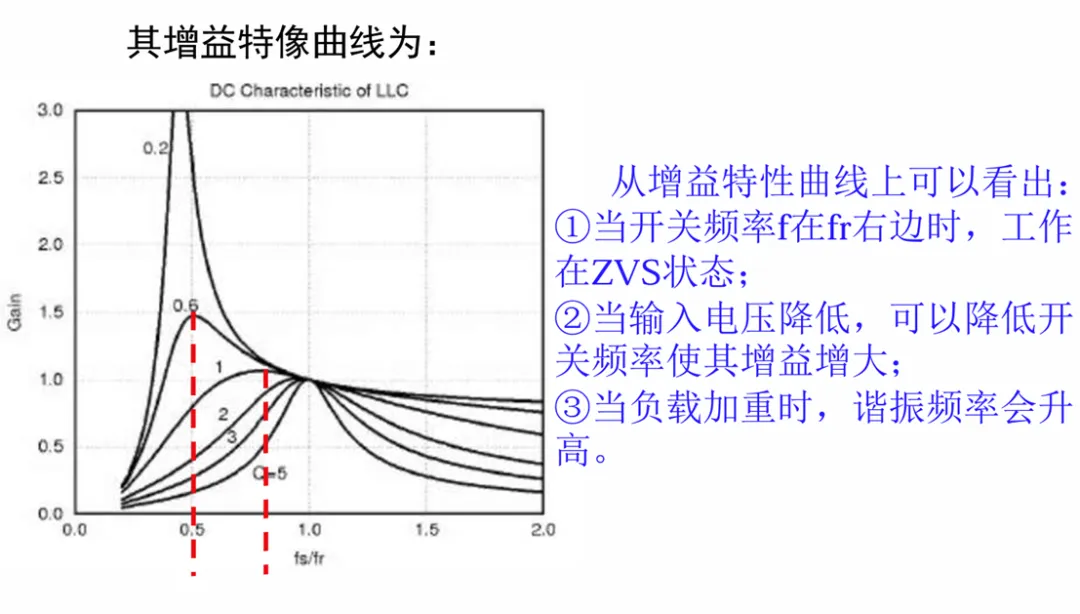

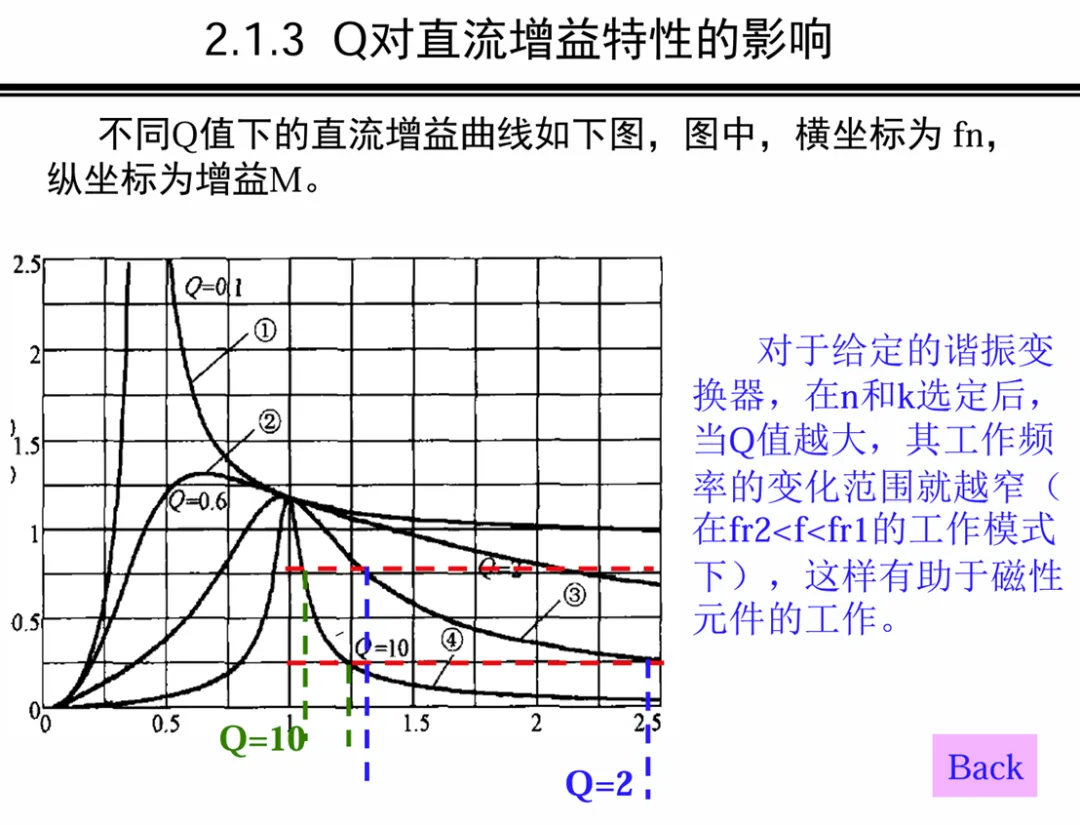

PPT

如果这篇文章帮助到您了，可以给我点个关注和赞嘛

免责声明：本文转自网络，本号对所有原创、转载文章的陈述与观点均保持中立，推送文章仅供读者学习和交流。文章、图片等版权归原作者享有，如有侵权，联系删除。
